EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems

Be the first to leave a review.

High-performance motion control for precision applications.

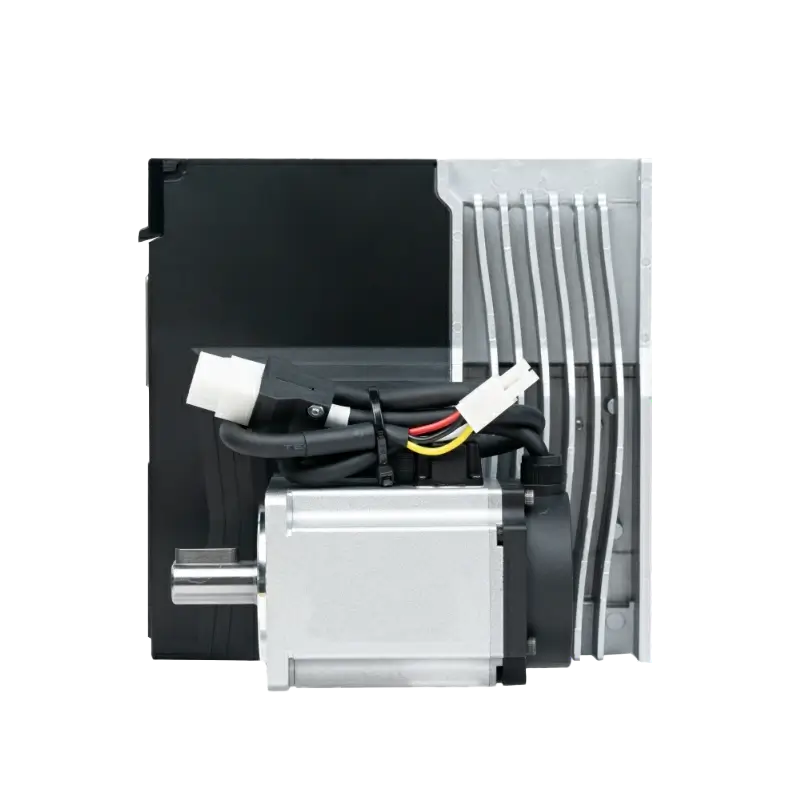

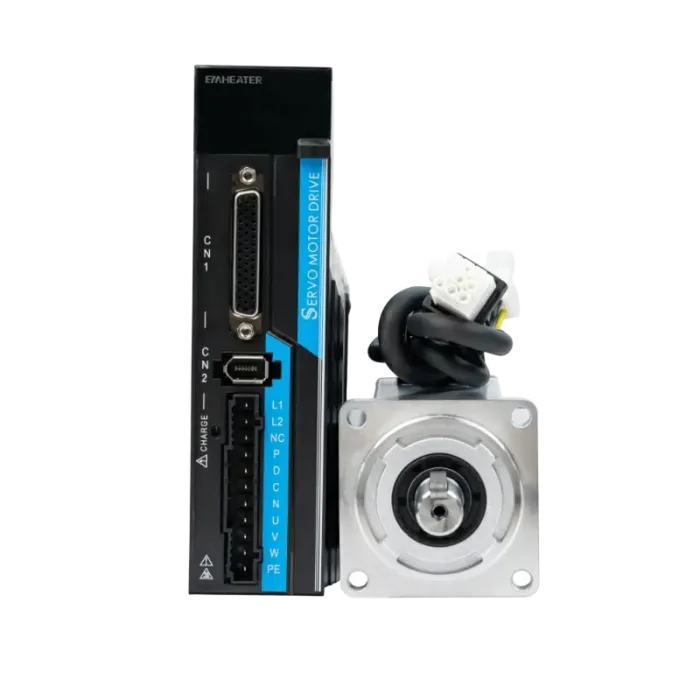

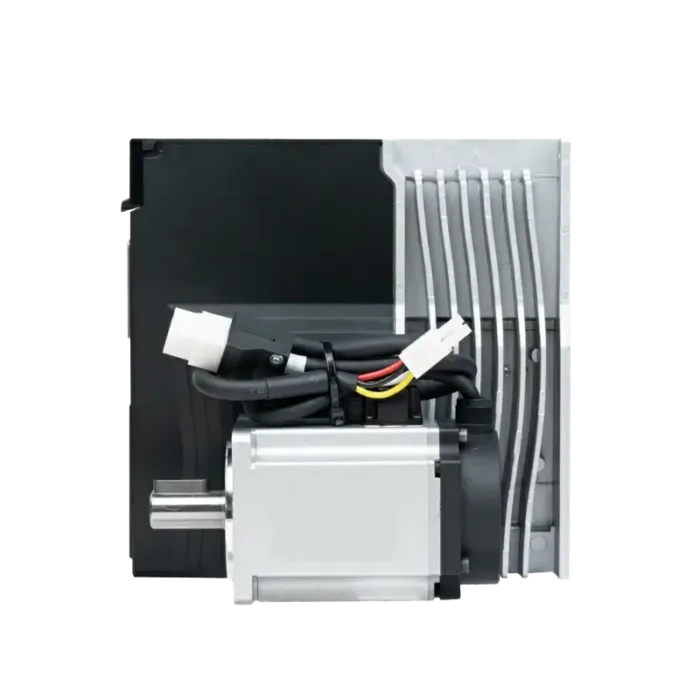

Servo system package: includes Servo, motor, 3-meter power cable, and 3-meter encoder cable.

* All prices are net prices (without VAT) and do not include transport costs, which will be added in the order.

EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems

$91.54

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 2
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 3
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 4
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 5
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 6
EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems - Image 7

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

EMSD5-AS040+EM-60S012N30S22 | Servo Drive and Motor Systems

$91.54

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products

Honyee Servo Drive and Motor Systems

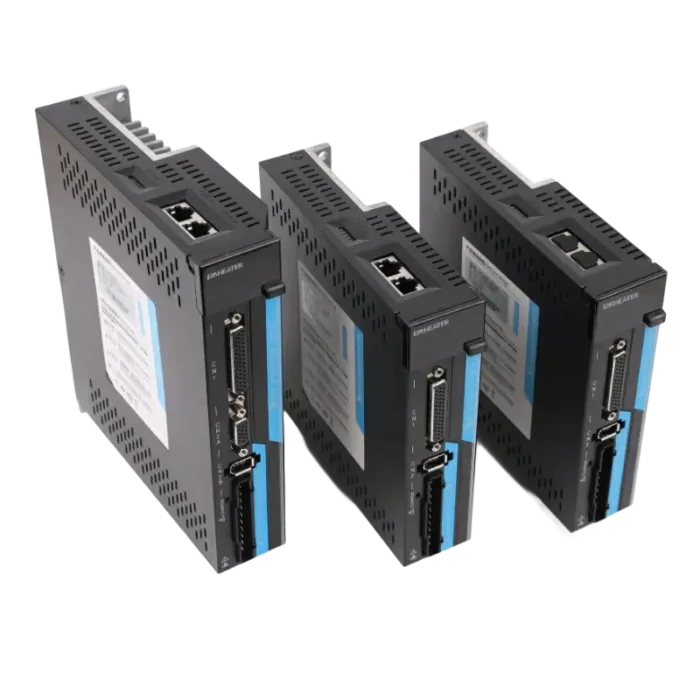

Servo Driver Specification

Model EMSD5-A EMSD5-B
Power 0.05KW~1KW 1KW~3KW
Main Circuit 1 phase AC220V-15%~10% 50/60Hz 1 phase/3 phases AC220V-15%~10% 50/60Hz
Control Mode
  • 0: Position
  • 1: Speed
  • 2: Torque
  • 3: Position and speed
  • 4: Position and torque
  • 5: Speed and torque
Protection Function
  • Over speed
  • Over voltage
  • Under voltage
  • Overload
  • Abnormal main power
  • Abnormal encoder
  • Out of position error
Monitor Function
  • Speed
  • Current position
  • Command pulse accumulation
  • Position deviation
  • Motor torque
  • Motor current
  • Running state
Control Input
  • 1: Servo on
  • 2: Alarm clearance
  • 3: CCW drive inhibition
  • 4: CW drive inhibition
  • 5: Deviation counter clearance
  • 6: Command pulse inhibition
  • 7: CCW torque limit
  • 8: CW torque limit
Control Output
  • Servo ready
  • Servo alarm
  • Positioning completion
  • Mechanical braking
Regeneration Braking Built-in/ Built-out
Load Less than 3 times of motor torque
Display 5 LED digital display and 4 keys
Communication RS485
Position Control Mode
Input Mode
  • 1: CCW/CW pulse
  • 2: A/B phase orthogonal pulse
  • 3: Internal position control
Electronic gear ratio 1-32767/1-32767

Servo Motor and Matched Servo Drive List

Flange Model Power (W) Speed (RPM) Matched Drive Encoder
60mm
60mm EM-60S006N30S22 200 3000 EMSD5-A 17-bit absolute encoder
60mm EM-60S013N30S22 400 3000 EMSD5-A 17-bit absolute encoder
80mm
80mm EM-80S024N30S22 750 3000 EMSD5-A 17-bit absolute encoder
80mm EM-80S032N30S22 1000 3000 EMSD5-A 17-bit absolute encoder
110mm
110mm EM-110S020N30I22 600 3000 EMSD5-B 2500ppr incremental encoder
110mm EM-110S040N20I22 800 2000 EMSD5-B 2500ppr incremental encoder
110mm EM-110S040N30I22 1200 3000 EMSD5-B 2500ppr incremental encoder
130mm
130mm EM-130S040N25S22 1000 2500 EMSD5-B 17-bit absolute encoder
130mm EM-130S050N25S22 1300 2500 EMSD5-B 17-bit absolute encoder
130mm EM-130S060N25S22 1500 2500 EMSD5-B 17-bit absolute encoder
130mm EM-130S077N25S22 2000 2500 EMSD5-B 17-bit absolute encoder
