Honyee 4.3/7/10.1/15.6 inch General Series HMI Panels

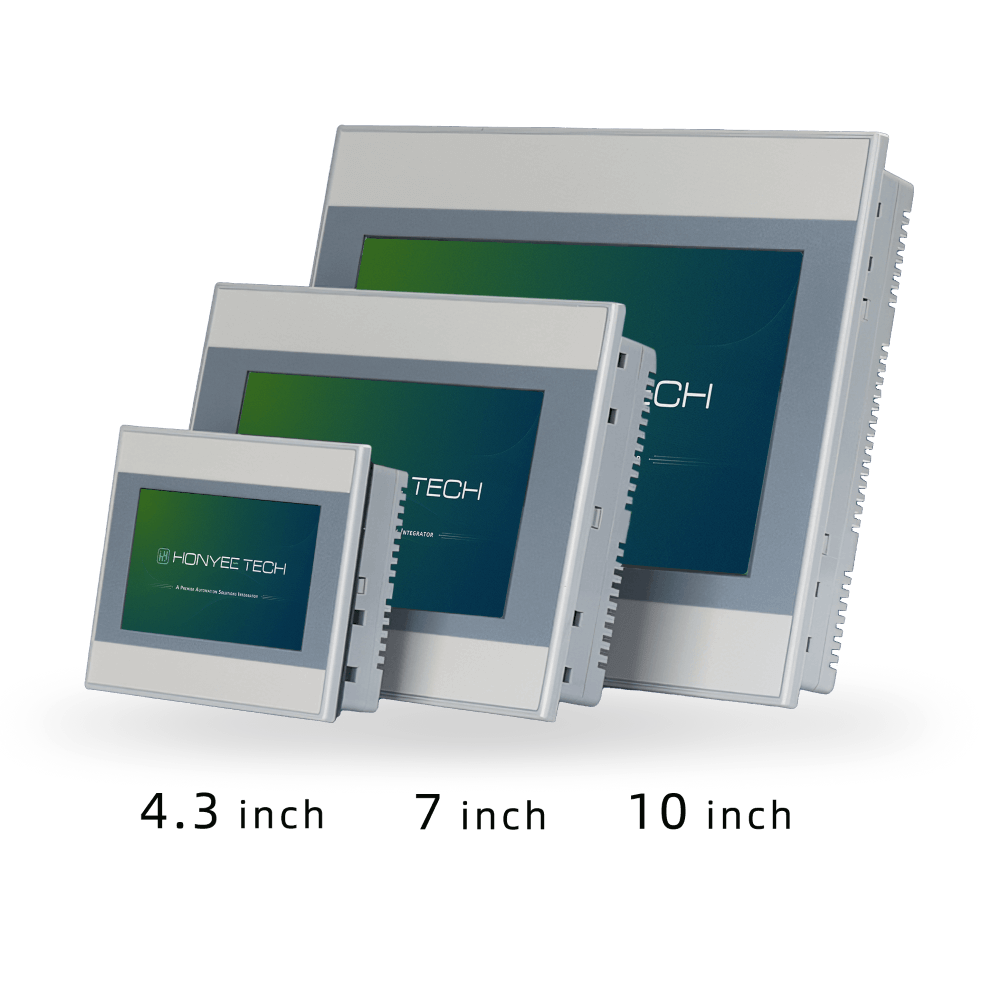

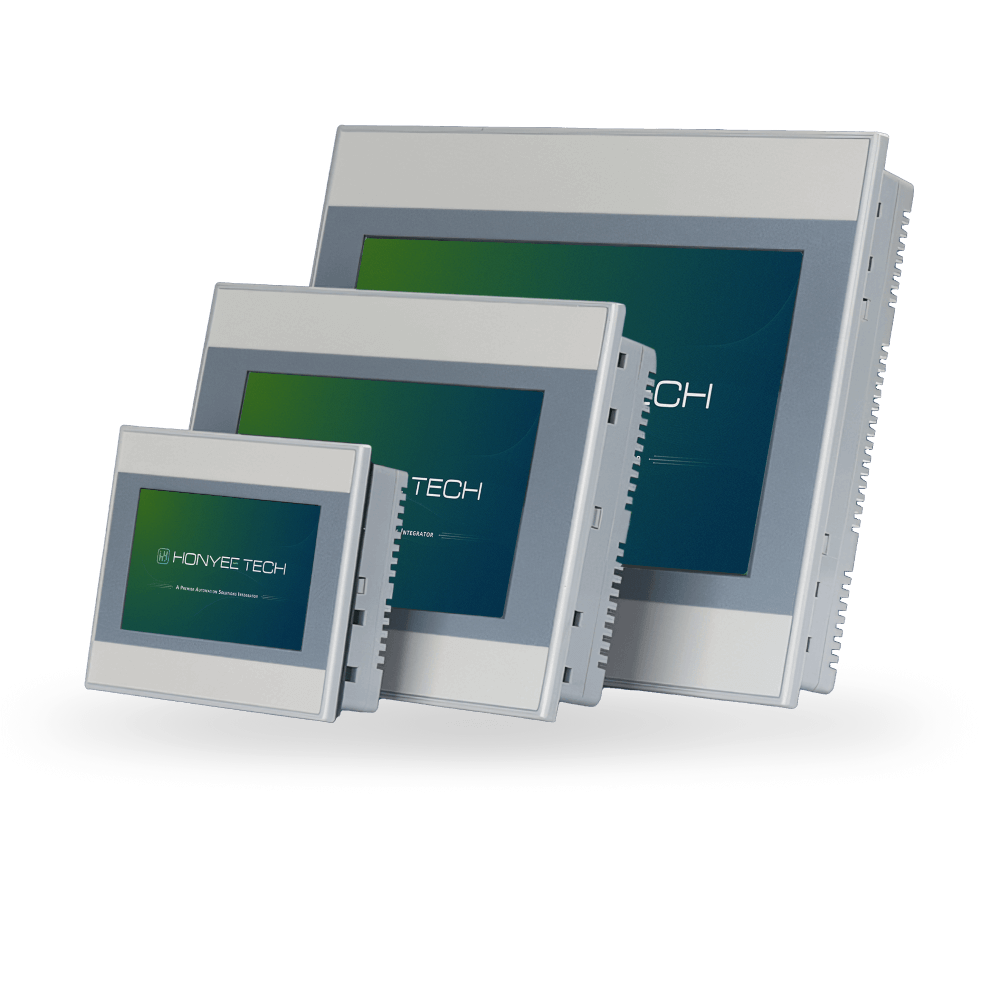

Honyee Human-Machine Interfaces (HMIs) offer a versatile range of displays from compact 4.3-inch to expansive 15.6-inch screens, designed to meet diverse industrial needs. Engineered with expertise from over a decade in automation, these HMIs combine robust hardware and intuitive software for seamless integration and reliable performance.
| Screen Size | 4.3 inch, 7.0 inch, 10.1 inch, 15.6 inch |
|---|
* All prices are net prices (without VAT) and do not include transport costs, which will be added in the order.
Honyee 4.3/7/10.1/15.6 inch General Series HMI Panels
$42.99 – $95.99
- 24/7 Online Support
- 12 Months Warranty for New Products
Honyee 4.3/7/10.1/15.6 inch General Series HMI Panels
$42.99 – $95.99
- 24/7 Online Support
- 12 Months Warranty for New Products
Honyee HT0401G/HT0701G/1001G/1501G General Series HMI
Honyee Human-Machine Interfaces (HMIs) offer a versatile range of displays from compact 4.3-inch to expansive 15.6-inch screens, designed to meet diverse industrial needs. Engineered with expertise from over a decade in automation, these HMIs combine robust hardware and intuitive software for seamless integration and reliable performance.
Honyee HT0401G/HT0701G/1001G/1501G General HMI Key Features
- Fast-speed processor: Powered by CPU ARM Cortex-A7 dual-core 1.2GHz, greatly improve the display speed and data processing, which is more efficient and stable.
- High visual quality: 400cd/m² bright LCD touchscreens. 16.7 million colors deliver vibrant, crisp, and well-contrasted visuals for superior user experience.
- Wide visual angles: High-resolution LCD displays with maximum 1024*600 pixels and wide visual angles (T: 60°/ B:75°/ L:75°/ R: 75°) ensure clear visibility from multiple perspectives.
- Flexible screen display: Supports both vertical and horizontal display orientations to adapt to various application requirements.
- Long LED backlight life: 35,000+ hours of LED backlight life ensures years of reliable operation, reducing maintenance and replacement costs.
- IP65 protection: All HMIs are IP65 protection and can operate in the environment 0~50℃.
- Easy to connect with other devices: Supports to connect with over 400+ plc brands and devices. Equipped with multiple COM ports for simultaneous communication with various devices.
- USB interface: Plug-and-play USB ports support program upload/download, data storage, and direct connections to peripherals like printers, barcode readers, keyboards, mice, and PLCs.
- Advanced communication protocols: Supports Modbus TCP/IP and RTU protocols for efficient industrial communication. Configurable as a Client (Master) or Server (Slave) for flexible setup and seamless device communication.
Specifications of Honyee 4.3″/7″/10.1″/15.6″ General HMI
| Model Specifications | HT0401G | HT0701G | HT1001G | HT1501G |
|---|---|---|---|---|
| Display | ||||
| LCD view angle (T/B/L/R) | 60°/75°/75°/75° | 80°/80°/80°/80° | ||
| Panel | 4.3″ TFT LCD | 7″ TFT LCD | 10.1″ TFT LCD | 15.6″ TFT LCD |
| Resolution | 480×272 (HT0402G: 800×272) |
800×480 (HT0702G: 1024×600) |
1024×600 | 1920×1080 |
| Color | 24-bit (16,770,000 colors) | |||
| Brightness | 300 cd/m² | 220 cd/m² | ||
| Back light | LED | |||
| LCD life | 35,000 hours | |||
| Touch panel | 4-wire industrial resistive touch screen | |||
| CPU | ARM Cortex-A7 dual-core 1.2GHz | ARM Cortex-A53 quad-core 1.5GHz | ||
| Memory | 128M Flash + 128M DDR3 | 1M Flash + 8G DDR3 | ||
| RTC | Built-in RTC | |||

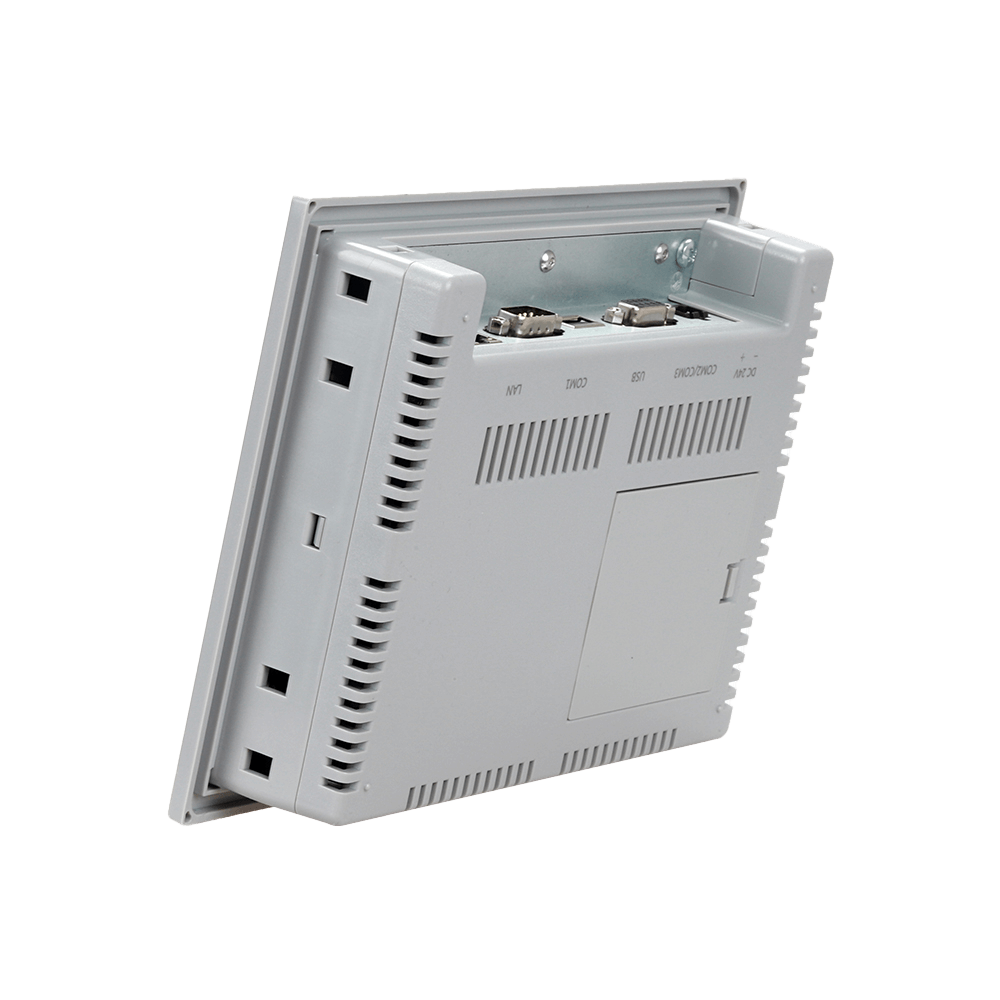

| COM port | ||||
| Ethernet | Optional 1 × 10M/100M adaptive | 1 × 10M/100M adaptive | ||
| USB terminal | 1 USB Host 2.0 | |||

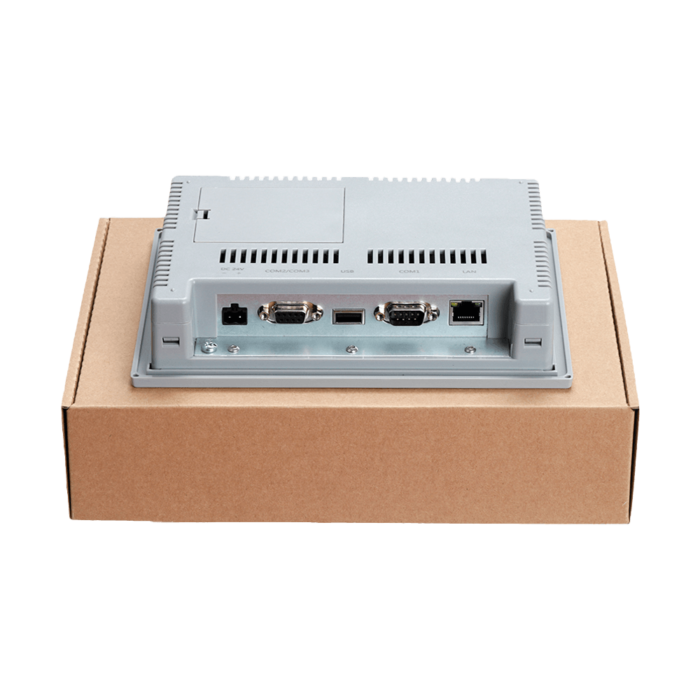

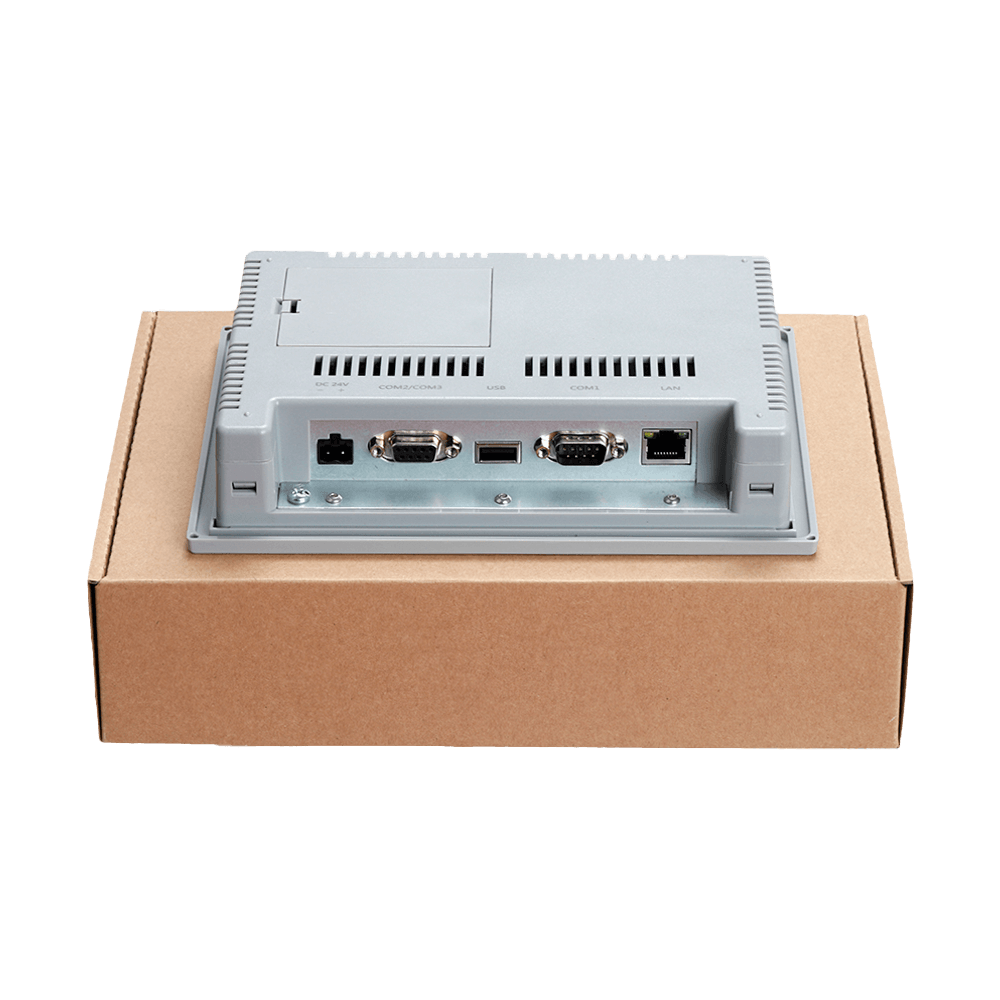

| Serial COM port | COM1: RS232 COM2: RS485/RS422 COM3: RS485 |
|||
| IoT | Optional support 4G or Wi-Fi expansion | Support 4G or Wi-Fi expansion | ||
| Supply | ||||
| Rated power | < 3W | < 10W | ||
| Rated voltage | DC24V, working range DC 12V~28V | |||
| Protection | Lightning surge protection | |||
| Allow power failure | < 5mS | |||
| Structure | ||||
| PCB coating | No (customizable) | |||
| Dimension | 128×102×36mm | 202×165×43mm | 272×215×43mm | 395×258×52mm |
| Cut-out size | 120×94mm | 192×138mm | 260×202mm | 384×247mm |
| Mechanical structure | Engineering Plastics | Industrial die-cast aluminum | ||
| Protection | Front panel: IP65 Rear cover: IP20 |
|||
| Weight | ≈0.5kg | ≈0.8kg | ≈1.2kg | ≈2.4kg |
| Installation | Panel embedded | |||
| Environment | ||||
| Working temp. | 0~50℃ | |||
| Storage temp. | -20~60℃ | |||
| Humidity | 10~90%RH (non-condensing) | |||
| Shock resistance | 10~25Hz (X, Y, Z directions 2G/30 mins) | |||
| Cooling method | Natural air cooling | |||
| Software | Easy Manager PRO V2.02 or above | |||
Comparison of Honyee HMI series
| Series | B Series | G Series | P Series |
|---|---|---|---|
| Panel | 4.3”, 7”, 10.1” | 4.3”, 7”, 10.1” | 7”, 10.1”, 15.6” |
| Color | 16.7M colors | 16.7M colors | 16.7M colors |
| Brightness | 300 cd/m² | 400 cd/m² | 600 cd/m², 200 cd/m² for 15” |
| LCD life | 20,000 hours | 35,5000 hours | 50,000 hours |
| Touch panel | Resistive | Resistive | Resistive or capacitive |
| CPU | ARM Cortex-A7 dual-core 1.2GHz | ARM Cortex-A7 dual-core 1.2GHz | ARM Cortex-A7 dual-core 1.2GHz or ARM Cortex-A53 quad-core 1.5GHz |
| Memory | 128M Flash + 64M DDR3 128M Flash + 128 DDR3 |
128M Flash + 128 DDR3 | 128M Flash + 128 DDR3 or 1G Flash + 8G DDR3 |
| Ethernet | No | Optional | Yes |
| USB | Yes | Yes | Yes |
| COM port | COM1: RS232/RS485 | COM1: RS232 COM2: RS485/RS422 COM3: RS485 |
COM1: RS232 COM2: RS485/RS422 COM3: RS485 |
| IoT | No | Optional support 4G or WIFI expansion | Optional support 4G or WIFI expansion |
| Protection | Front panel IP65 | Front panel IP65 | Front panel IP68 |
Software Information
The Honyee HT0401G is powered by SmartManager Pro, a user-friendly and intuitive software designed for easy configuration and operation. SmartManager Pro allows you to create custom interfaces, monitor real-time data, and control your automation systems with ease. Its drag-and-drop functionality and extensive library of pre-built templates make it ideal for both beginners and experienced users.

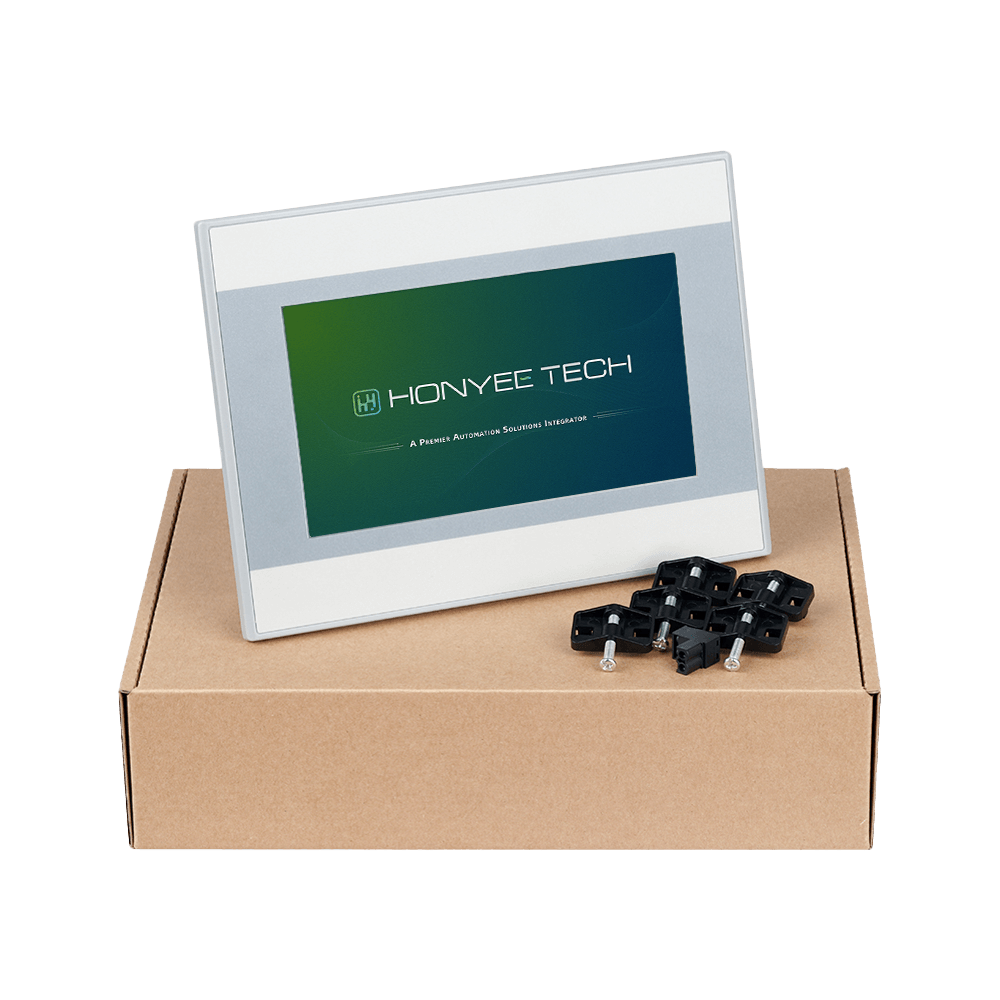

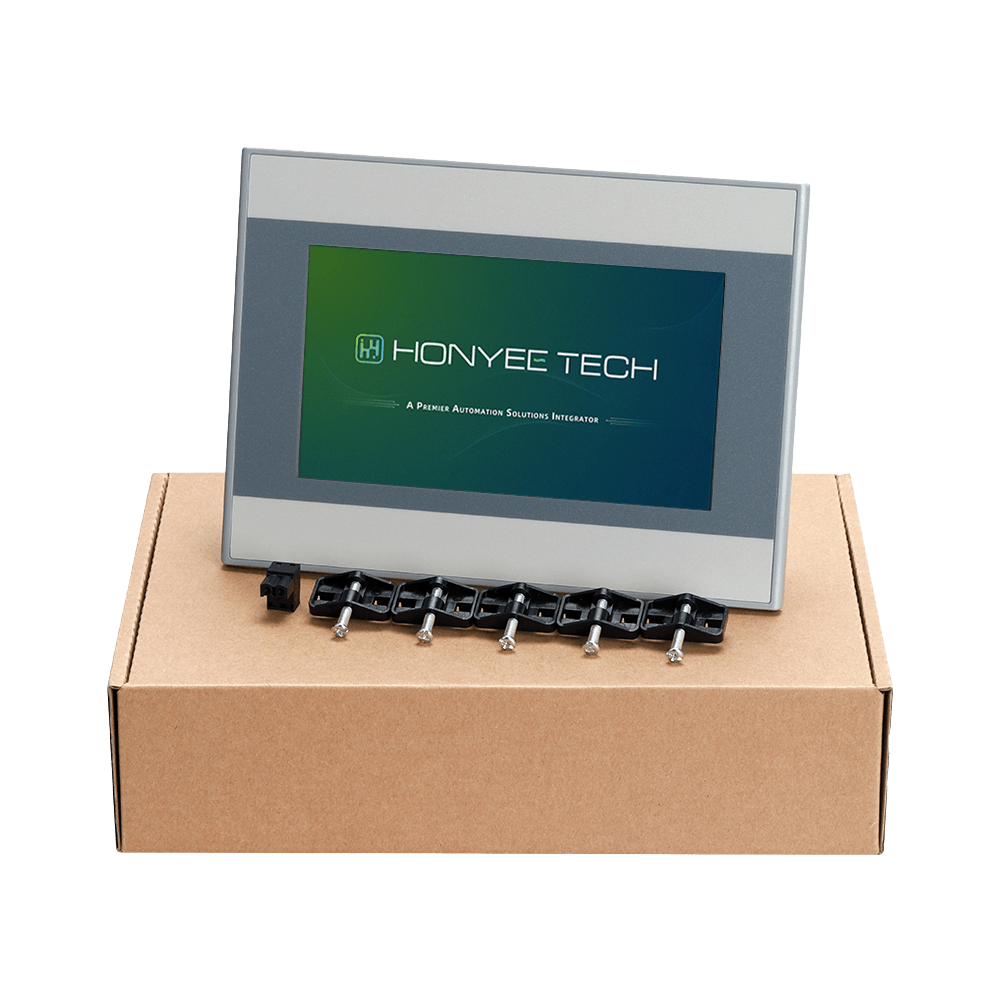

Package Contents
- 1x Honyee HT0401G HMI
Delivery
- Lead Time: 5 working days after order confirmation.
- Shipping Options: DHL, UPS, FedEx
Why Choose Honyee HMIs?
- Reliability: Built with durable components and tested for industrial environments.
- Ease of Use: Intuitive configuration software and flexible connectivity options.
- Versatility: Wide range of sizes and features to suit diverse applications.
- Cost-Effective: Long-lasting performance reduces downtime and maintenance costs.
Honyee HMIs are the ideal choice for industries seeking high-performance, user-friendly, and reliable touchscreen solutions. Whether for manufacturing, process control, or machinery automation, Honyee HMIs deliver unmatched efficiency and stability.
