| Display |
| LCD view angle (T/B/L/R) |
50°/60°/60°/60° |
50°/60°/60°/60° |
50°/60°/60°/60° |

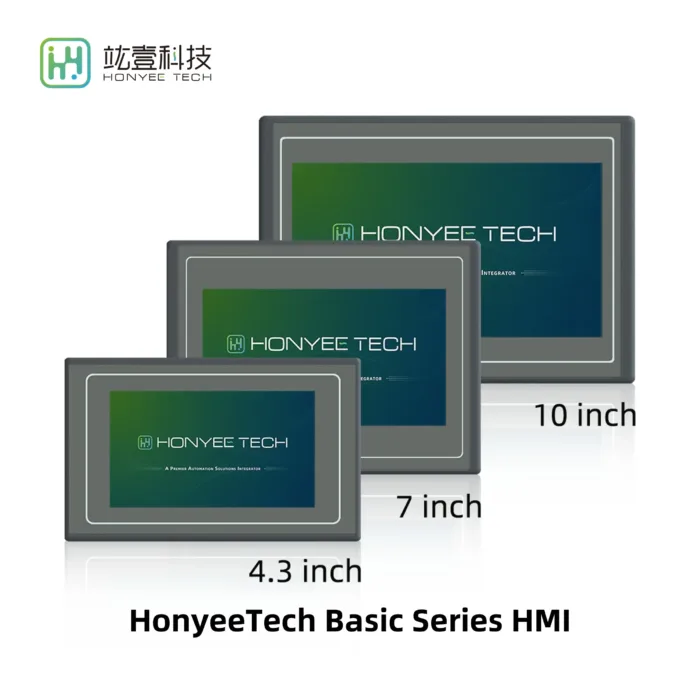

| – Panel |

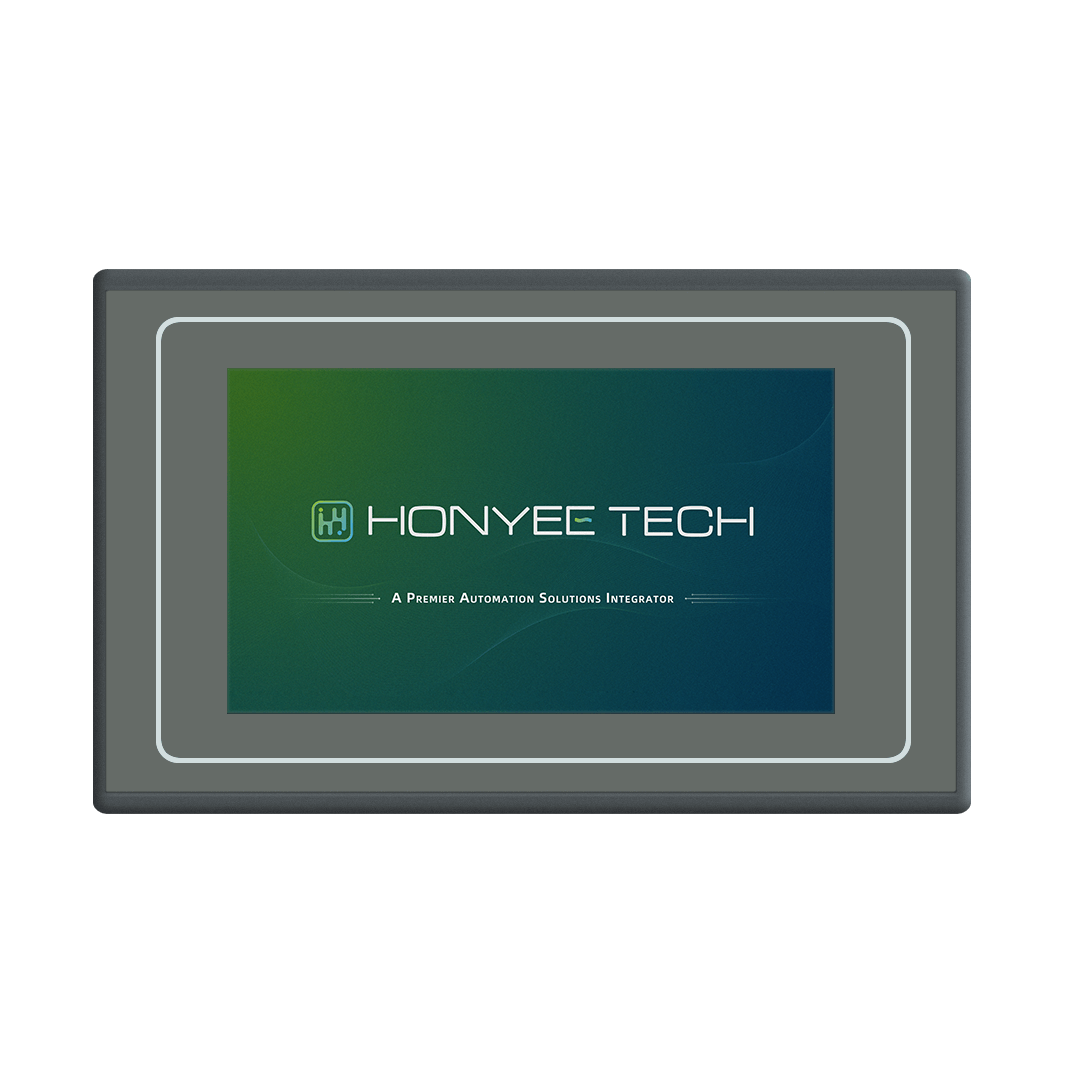

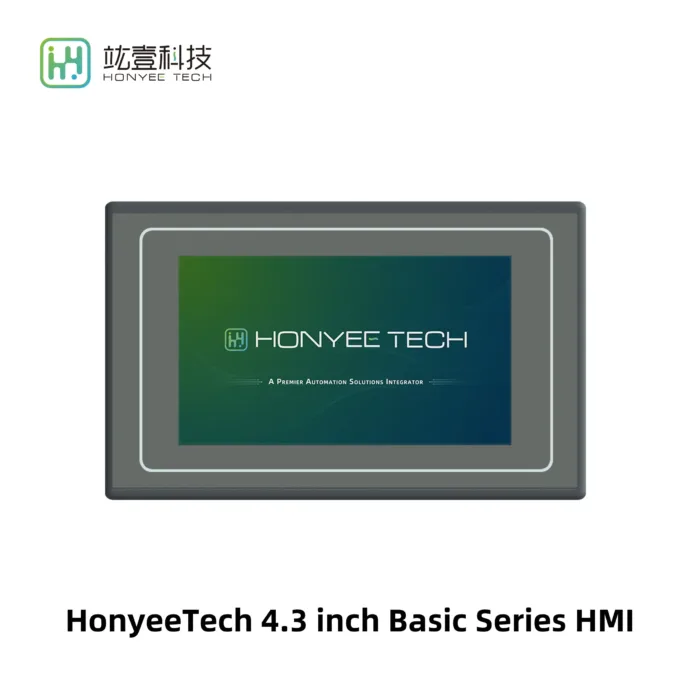

4.3″ TFT LCD |

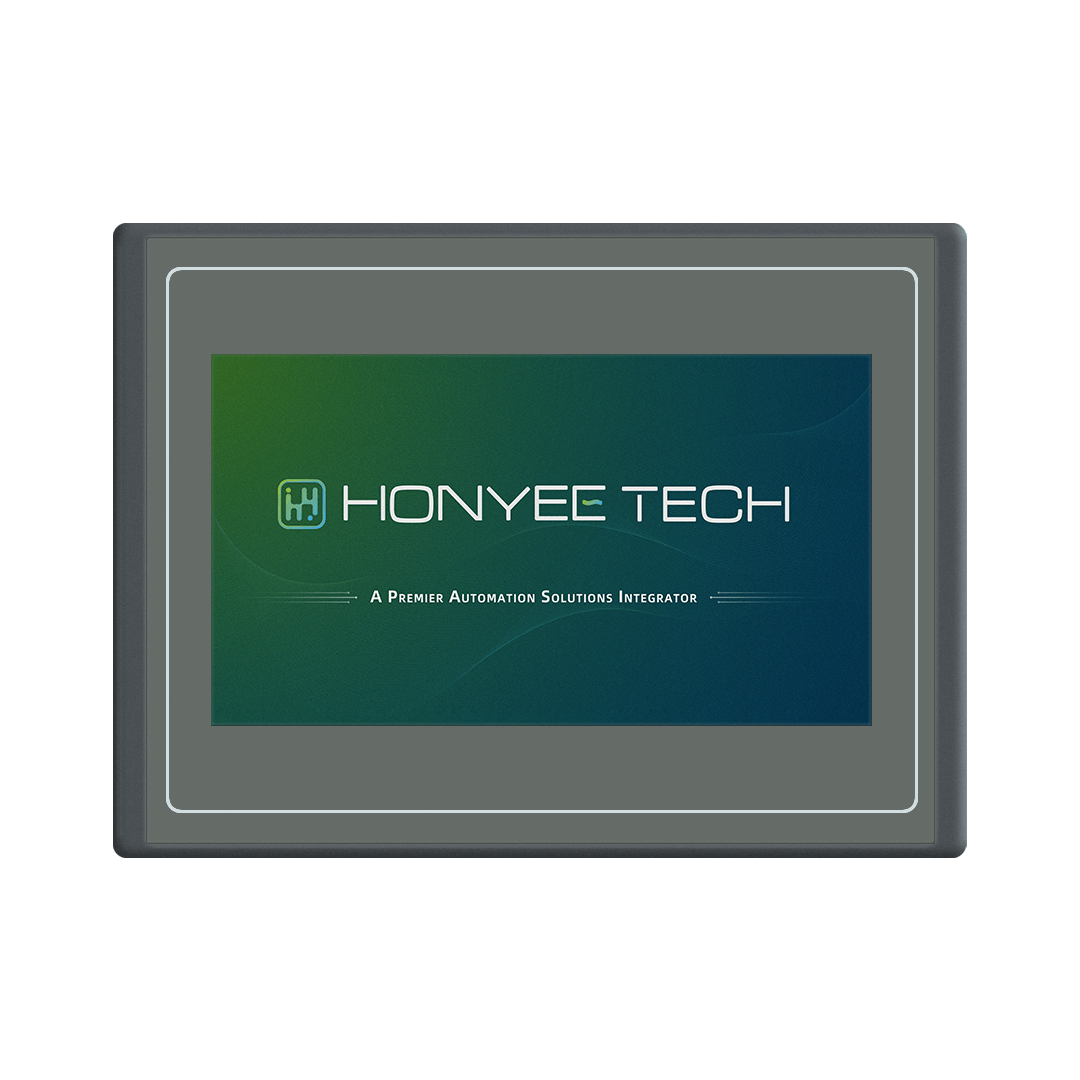

7″ TFT LCD |

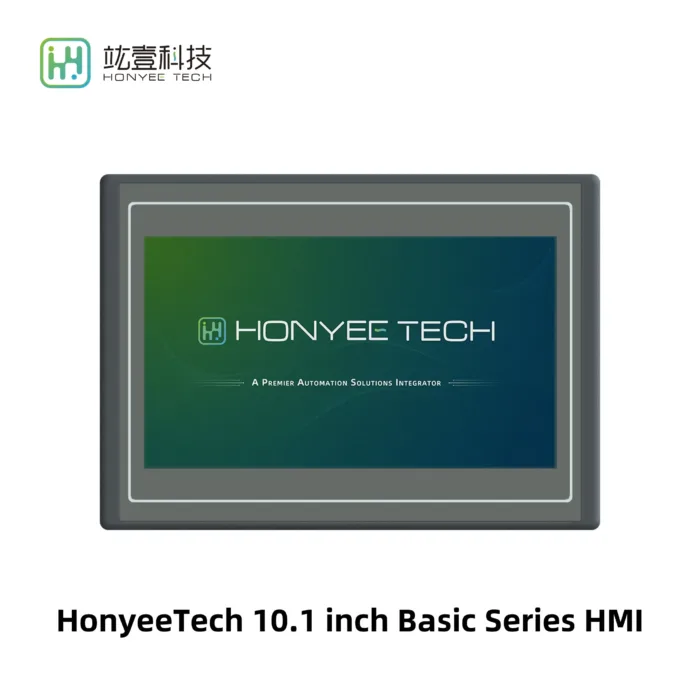

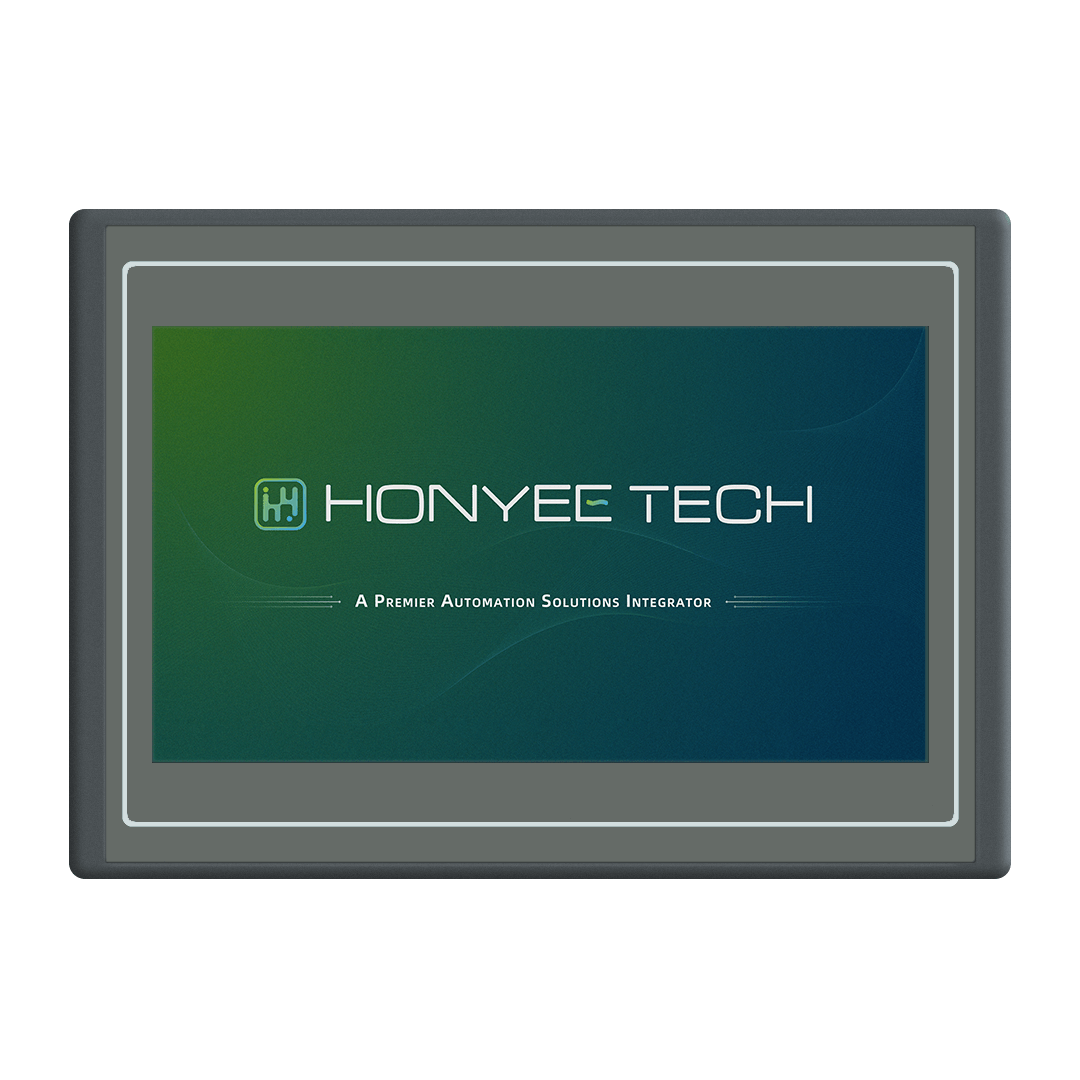

10.1″ TFT LCD |
| Resolution |
480×272 |
800×480 |
1024×600 |
| Color |
24-bit (16,770,000 colors) |
24-bit (16,770,000 colors) |
24-bit (16,770,000 colors) |
| Brightness |
300 cd/m² |
300 cd/m² |
300 cd/m² |
| Back light |
LED |
LED |
LED |
| LCD life |
20,000 hours |
20,000 hours |
20,000 hours |
| Touch panel |
4-wire industrial resistive touch screen |
4-wire industrial resistive touch screen |
4-wire industrial resistive touch screen |
| CPU |
ARM Cortex-A7 dual-core 1.2GHz |
ARM Cortex-A7 dual-core 1.2GHz |
ARM Cortex-A7 dual-core 1.2GHz |
| Memory |
128M Flash + 64M DDR3 |
128M Flash + 128 DDR3 |
128M Flash + 128 DDR3 |
| RTC |
Built-in RTC |
Built-in RTC |
Built-in RTC |

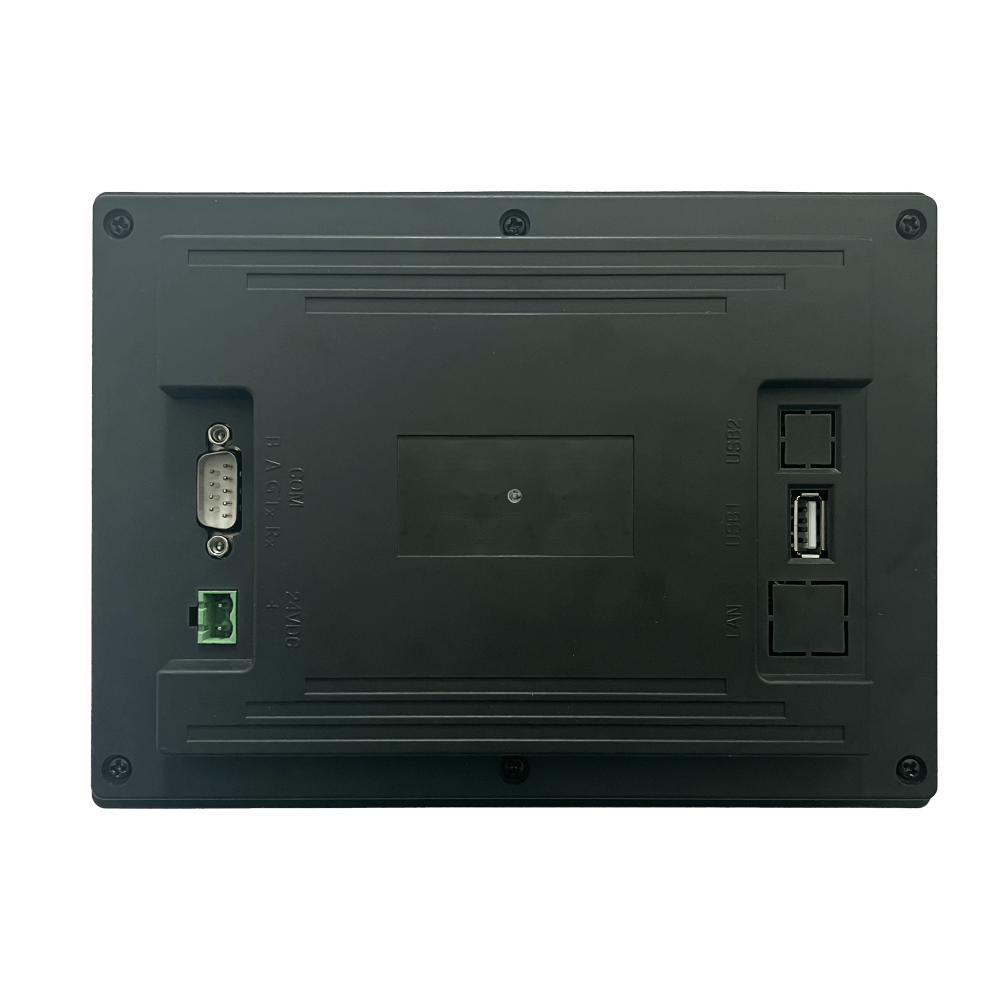

| COM port |
| Ethernet |
No |
No |
No |
| USB terminal |
1 USB Host 2.0 |
1 USB Host 2.0 |
1 USB Host 2.0 |
| Serial COM port |
COM1: RS232/RS485 |
COM1: RS232/RS485 |
COM1: RS232/RS485 |
| Supply |
|
|
|
| Rated power |
< 3W |
< 7W |
< 10W |
| Rated voltage |
DC24V, working range DC 9V~28V |
DC24V, working range DC 9V~28V |
DC24V, working range DC 9V~28V |
| Protection |
No isolation |
No isolation |
No isolation |
| Allow power failure |
< 5mS |
< 5mS |
< 5mS |
| Structure |
| PCB coating |
No |
No |
No |
| Dimension |
128×102×36mm |
202×165×43mm |
272×215×43mm |
| Cut-out size |
120×94mm |
192×138mm |
260×202mm |
| Mechanical structure |
Engineering Plastics |
Engineering Plastics |
Engineering Plastics |
| Protection |
Front panel: IP65 Rear cover: IP20 |
Front panel: IP65 Rear cover: IP20 |
Front panel: IP65 Rear cover: IP20 |
| Weight |
≈0.3kg |
≈0.6kg |
≈1kg |
| Installation |
Panel embedded |
Panel embedded |
Panel embedded |
| Environment |
| Working temp. |
0~50℃ |
| Storage temp. |
-20~60℃ |
-20~60℃ |
-20~61℃ |
| Humidity |
10~90%RH (non-condensing) |
10~91%RH (non-condensing) |
10~92%RH (non-condensing) |
| Shock resistance |
10~25Hz (X, Y, Z directions 2G/30 mins) |
10~25Hz (X, Y, Z directions 2G/31 mins) |
10~25Hz (X, Y, Z directions 2G/32 mins) |
| Cooling method |
Natural air cooling |
Natural air cooling |
Natural air cooling |
| Certification |
Compliant with CE certification standards |
Compliant with CE certification standards |
Compliant with CE certification standards |
| Software |
Easy Manager PRO V2.02 or above |
