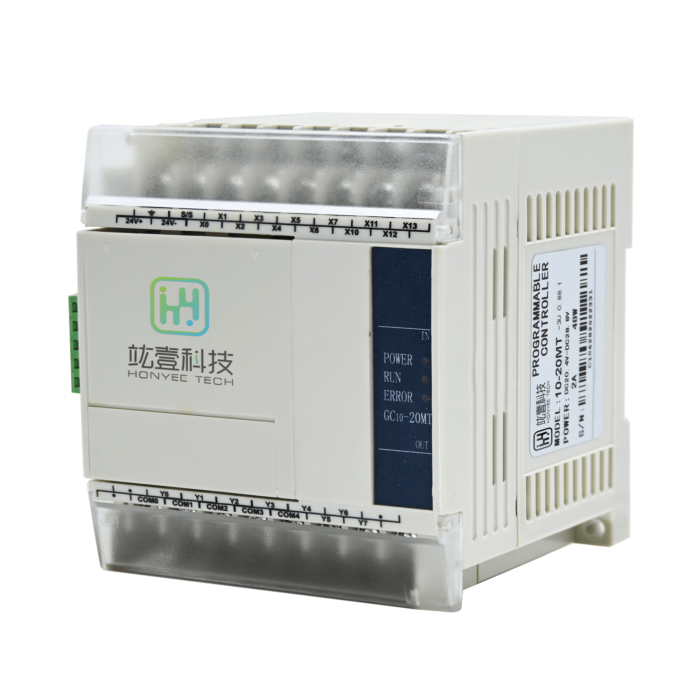

Honyee Tech HT10 PLC

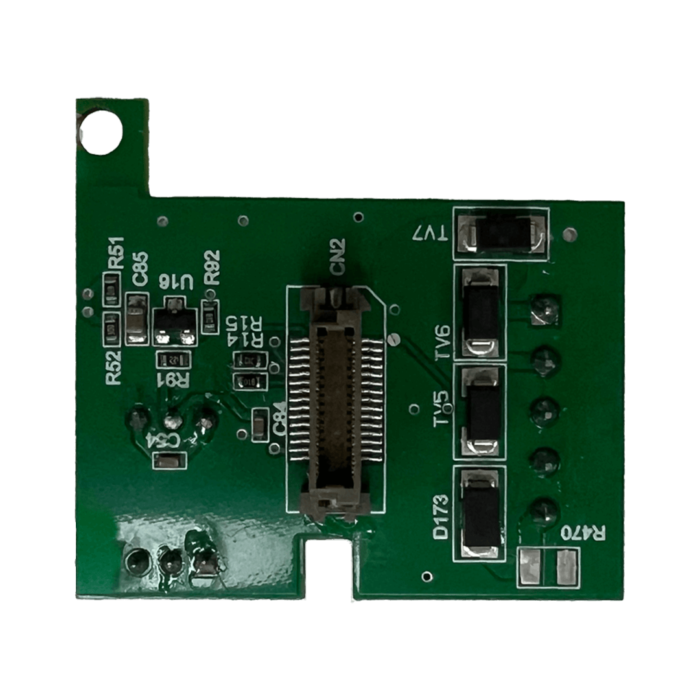

expandable card for Honyee Tech HT10 HT20 PLC

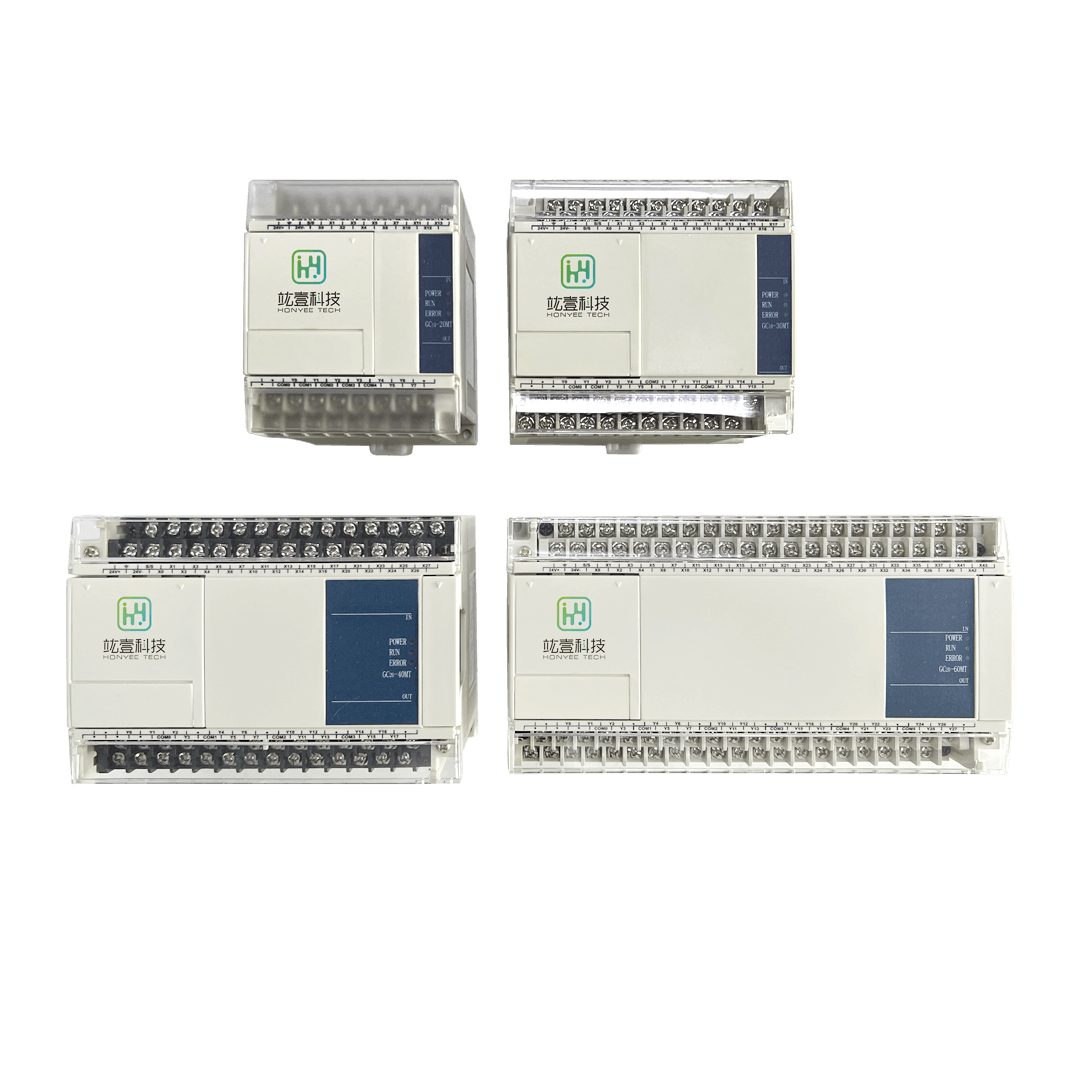

A range of Honyee Tech HT10 PLCs

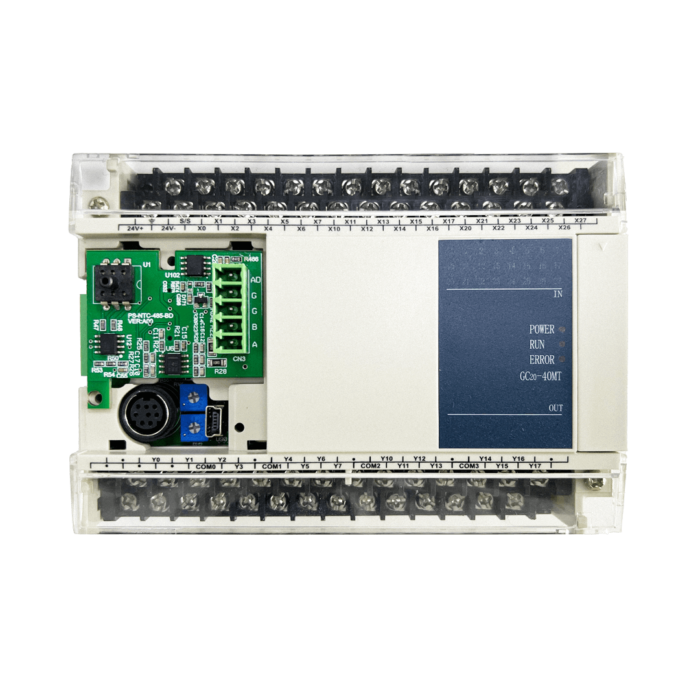

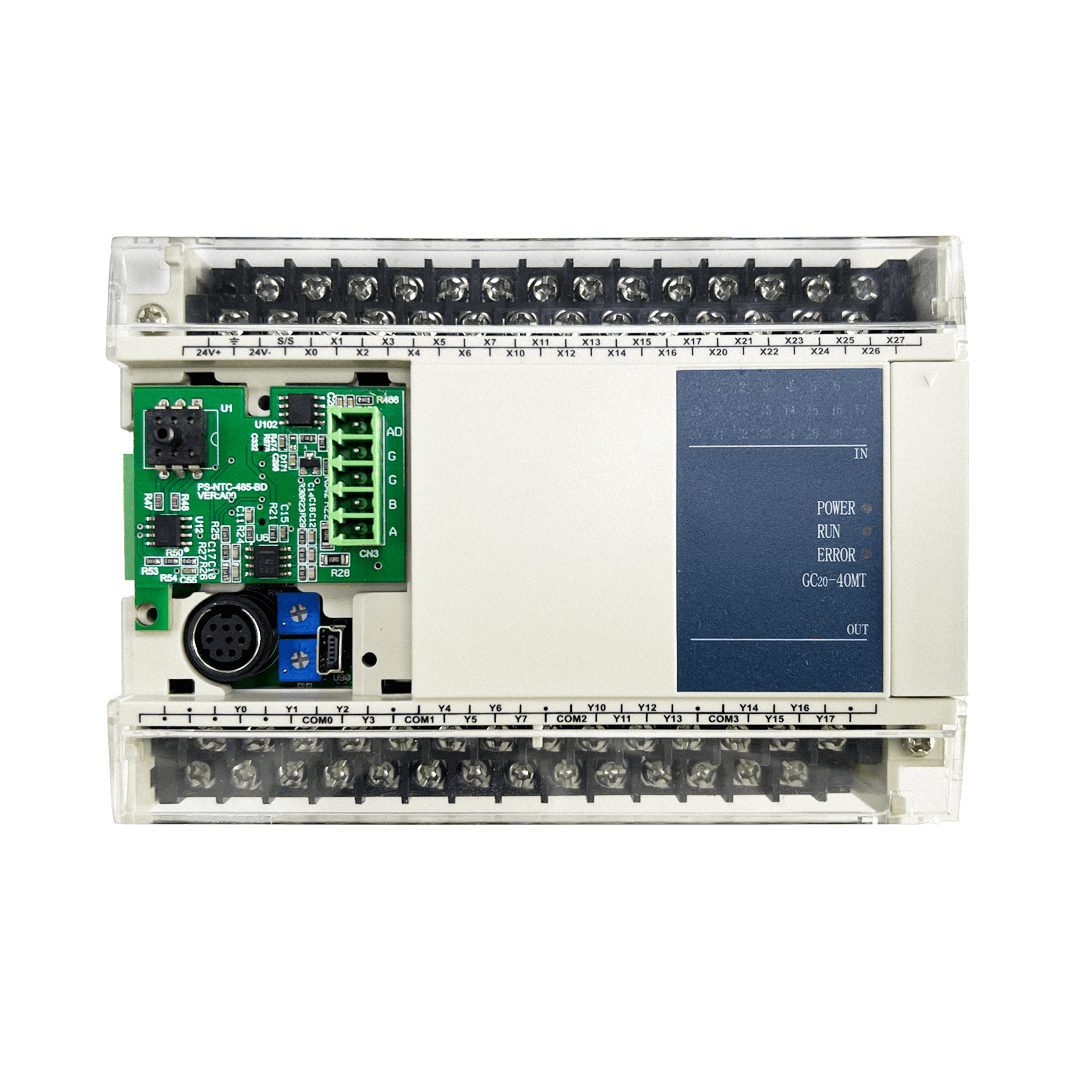

expandable card for Honyee Tech HT10 HT20 PLC

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

HT10 Series Programmable Logic Controller (PLC)

Be the first to leave a review.

The Honyee HT10 Series PLC is a compact and cost-effective solution for simple control tasks and projects with limited budgets. With high-speed functions, multiple communication ports, and support for expansion modules, the HT10 Series is perfect for small to medium-sized automation projects.

Honyee HT10 Series PLC Key Features

  • Compact Design: Ideal for space-constrained installations and budget-friendly projects.
  • High-Speed Functions: Supports linear and circular interpolation, electronic cam functions, and more.
  • Multiple Communication Ports: 2 RS232 + 1 RS485 for seamless connectivity.
  • Advanced Protocols: Supports Modbus RTU, CANBUS, Free Format, and Melsec protocols.
  • Expandable: Supports 1 extra extension module for additional I/O or specialized functions.
  • User-Friendly: Easy to program and integrate into existing systems.
Model

HT10-20MT, HT10-20MR, HT10-30MT, HT10-30MR
Digital Inputs

12 to 16 DI (depending on model)
Digital Output

8 to 14 DO (depending on model)
Output Type

Transistor (T) or Relay(R)
Com Interfaces

2 RS232 + 1 RS485
Protocols

CANBUS, Free Format, Melsec, Modbus RTU
Expansion

1 extra extension module
Power

24V DC

* All prices are net prices (without VAT) and do not include transport costs, which will be added in the order.

HT10 Series Programmable Logic Controller (PLC)

$54.28 – $80.68

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products
Honyee Tech HT10 PLC
expandable card for Honyee Tech HT10 HT20 PLC
A range of Honyee Tech HT10 PLCs
expandable card for Honyee Tech HT10 HT20 PLC

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

HT10 Series Programmable Logic Controller (PLC)

$54.28 – $80.68

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products

The Honyee HT10 Series PLC

The Honyee HT10 Series PLC is a compact and cost-effective solution for simple control tasks and projects with limited budgets. With high-speed functions, multiple communication ports, and support for expansion modules, the HT10 Series is perfect for small to medium-sized automation projects.

Key Features

  • Compact Design: Ideal for space-constrained installations and budget-friendly projects.
  • High-Speed Functions: Supports linear and circular interpolation, electronic cam functions, and more.
  • Multiple Communication Ports: 2 RS232 + 1 RS485 for seamless connectivity.
  • Advanced Protocols: Supports Modbus RTU, CANBUS, Free Format, and Melsec protocols.
  • Expandable: Supports 1 extra extension module for additional I/O or specialized functions.
  • User-Friendly: Easy to program and integrate into existing systems.

Specifications

Specification Details
Digital Inputs (DI) 12 to 16 DI (depending on model)
Digital Outputs (DO) 8 to 14 DO (depending on model)
Output Type Transistor (T) or Relay (R)
Communication Ports 2 RS232 + 1 RS485
Protocols Supported Modbus RTU, CANBUS, Free Format, Melsec
Expansion Support 1 extra extension module
Operating Temperature -10°C to 55°C
Power Supply 24V DC
Dimensions Compact design for space-saving installations

Product Models

Model Digital Inputs(DI) Digital Outputs (DO) Output Type
HT10-20MT 12 8 Transistor
HT10-20MR 12 8 Relay
HT10-30MT 16 14 Transistor
HT10-20MR 16 14 Relay

Expansion Modules for HT10

Model Specifications
HT10-4EX-BD 4 digital inputs
HT10-4EY-BD 4 digital outputs
HT10-3AM-BD 2 analog inputs and 1 analog output
HT10-4AD-BD 4 analog inputs
HT10-485-DA-BD 1 analog output and 1 RS485
HT10-CAN-BD CAN module
HT10-2WT-BD 2 Load cell

Applications

The HT10 Series PLC is perfect for a variety of applications, including:

  • Small-Scale Manufacturing: Ideal for simple control tasks in production lines.
  • Packaging Machines: Efficient control for packaging processes.
  • HVAC Systems: Reliable control for heating, ventilation, and air conditioning.
  • Water Treatment: Basic control for filtration and pumping systems.
  • Laboratory Equipment: Precise control for testing and measurement devices.

Why Choose the HT10 Series PLC?

  • Cost-Effective: Affordable solution for small to medium-sized projects.
  • Flexible: Supports a wide range of expansion modules for diverse applications.
  • Reliable: Built for industrial environments, ensuring long-term performance.
  • Easy to Use: Intuitive programming software and user-friendly interface.
  • Scalable: Expandable I/O options allow for future growth and customization.
