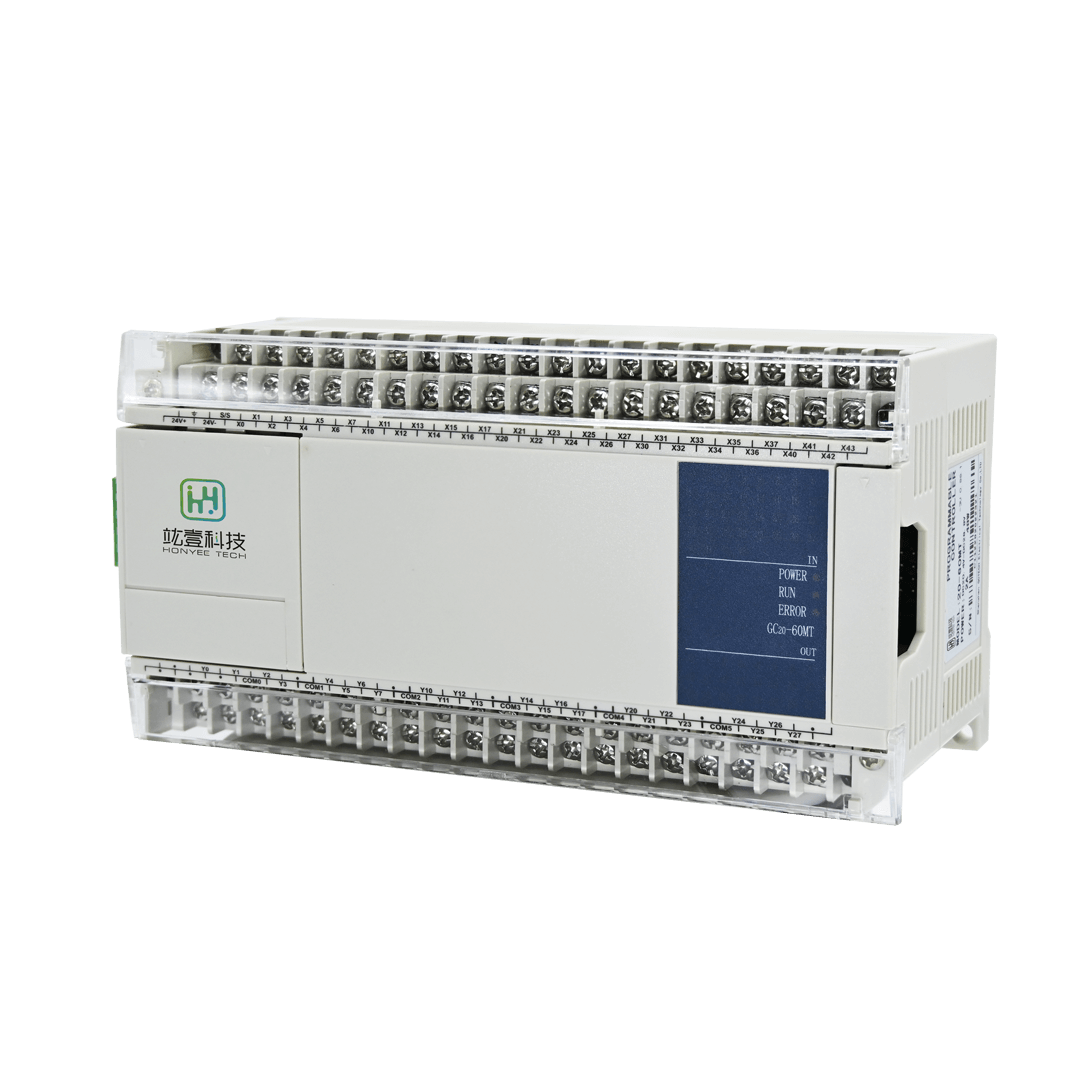

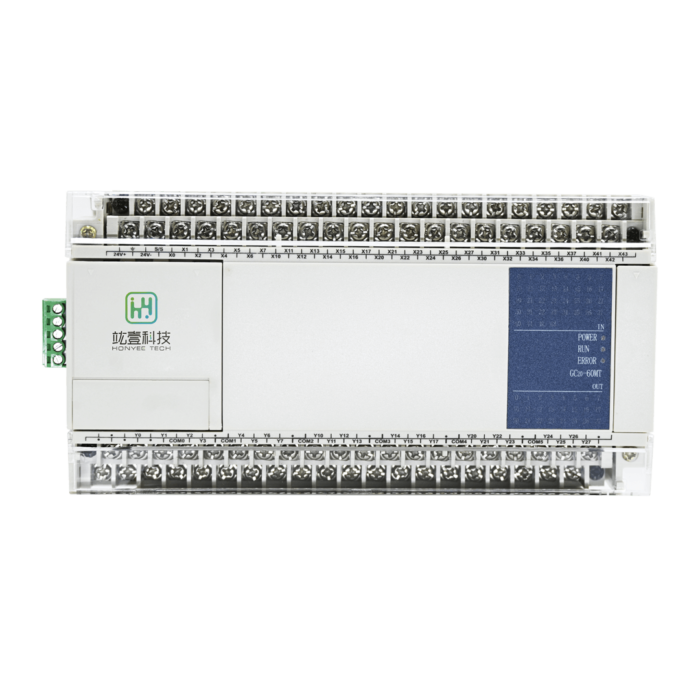

The Honyee HT20 Series PLC
The Honyee HT20 Series PLC is an advanced automation solution designed for medium to large-scale projects. With more digital I/O points, support for multiple expansion modules, and high-speed functions, the HT20 Series offers unparalleled flexibility and performance for complex industrial applications.
Key Features
- High I/O Capacity: Supports up to 36 digital inputs (DI) and 24 digital outputs (DO), making it ideal for larger projects.
- Multiple Communication Ports: 2 RS232 + 1 RS485 for seamless connectivity with other devices and systems.
- High-Speed Functions: Supports linear and circular interpolation, electronic cam functions, and more for precise control.
- Advanced Protocols: Supports Modbus RTU, CANBUS, Free Format, and Melsec protocols for versatile integration.
- Expandable: Supports expansion cards and modules for additional I/O, analog inputs/outputs, temperature control, and positioning functions.
- Reliability: Built to withstand harsh industrial environments, ensuring long-term performance.
- User-Friendly: Intuitive programming software and easy integration into existing systems.
Technical Specifications
| Specification |
Details |
| Digital Inputs (DI) |
24 to 36 DI (depending on model) |
| Digital Outputs (DO) |
16 to 24 DO (depending on model) |
| Output Type |
Transistor (T) or Relay (R) |
| Communication Ports |
2 RS232 + 1 RS485 |
| Protocols Supported |
Modbus RTU, CANBUS, Free Format, Melsec |
| Expansion Support |
Supports multiple expansion cards and modules |
| Operating Temperature |
-10°C to 55°C |
| Power Supply |
24V DC |
| Dimensions |
Compact design for space-saving installations |
Product Models
| Model |
Digital Inputs (DI) |
Digital Outputs (DO) |
Output Type |
| HT20-40MT |
24 |
16 |
Transistor |
| HT20-40MR |
24 |
16 |
Relay |
| HT20-60MT |
36 |
24 |
Transistor |
| HT20-60MR |
36 |
24 |
Relay |
Expansion Cards
| Model |
Specifications |
| HT10-4EX-BD |
4 digital inputs |
| HT10-4EY-BD |
4 digital outputs |
| HT10-3AM-BD |
2 analog inputs and 1 analog output |
| HT10-4AD-BD |
4 analog inputs |
| HT10-485-DA-BD |
1 analog output and 1 RS485 |
| HT10-CAN-BD |
CAN module |
| HT10-2WT-BD |
2 Load cell |
Expansion Modules
| Model |
Specifications |
| Digital Outputs |
| HT2U-0016ET |
16 transistor outputs |
| HT2U-16ET-6AM |
16 transistor outputs, 4 AI, 2 AO |
| Digital Inputs |
| HT2U-1600EN |
16 digital inputs |
| Mixed I/O |
| HT2U-0808ET |
8 DI, 8 DO, transistor outputs |
| HT2U-0808ER |
8 DI, 8 DO, relay outputs |
| HT2U-0808ET-6AM |
8 DI, 8 DO, transistor outputs, 4 AI, 2 AO |
| HT2U-1616ET |
16 DI, 16 DO, transistor outputs |
| HT2U-1616ER |
16 DI, 16 DO, relay outputs |
| HT2U-2408ET |
24 DI, 8 DO, transistor outputs |
| HT2U-0824ET |
8 DI, 24 DO, transistor outputs |
| Analog I/O |
| HT2U-2AD4DA |
2 AI, 4 AO, 0-10V/4-20mA |
| HT2U-4AD |
4 AI, 0-10V/4-20mA |
| HT2U-8AD |
8 AI, 0-10V/4-20mA |
| HT2U-4AD-PT |
4 AI for 2-wire PT |
| HT2U-8AD-PT |
8 AI for 2-wire PT |
| HT2U-8TC |
8 AI for thermocouples (K/J/N/E/T/R/S) |
| Positioning |

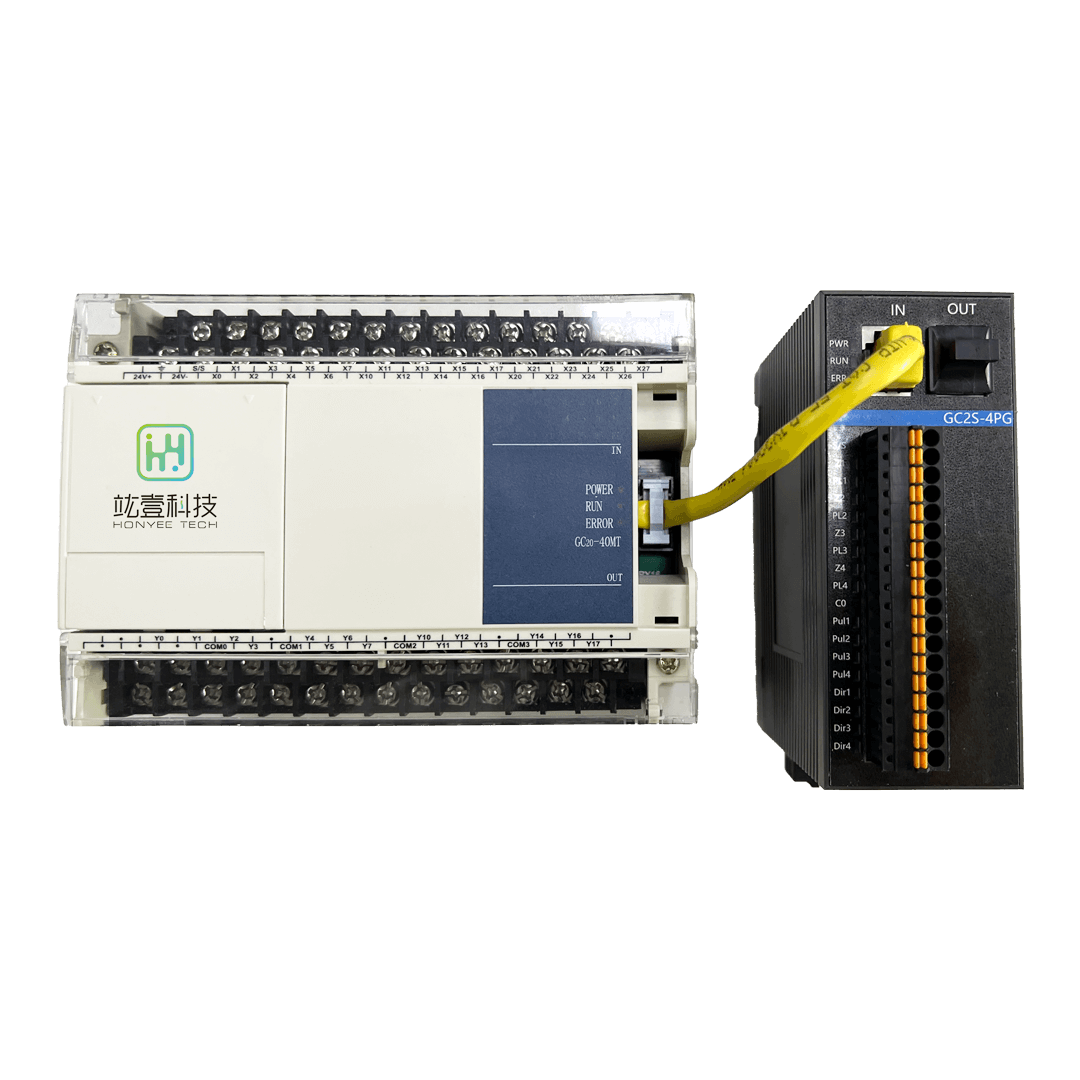

| HT2U-4PG |
4 positioning control modules, or 8 DI, 8 DO |
| HT2U-4PG-0808E |
4 positioning control modules + 8 DI, 8 DO expansion |
Applications
The HT20 Series PLC is perfect for a variety of applications, including:
- Large-Scale Manufacturing: Ideal for complex production lines and machinery.
- Packaging Systems: High-speed control for efficient and precise packaging processes.
- HVAC Systems: Advanced control for heating, ventilation, and air conditioning systems.
- Water Treatment: Robust control for large-scale filtration, pumping, and chemical dosing systems.
- Material Handling: Reliable control for conveyor systems and automated storage solutions.
Why Choose the HT20 Series PLC?
- High I/O Capacity: More digital points for larger and more complex projects.
- Flexibility: Supports a wide range of expansion cards and modules for diverse applications.
- Reliability: Built for industrial environments, ensuring long-term performance.
- High Performance: Advanced features like high-speed functions and multiple communication ports for precise control.
- Scalable: Expandable I/O options allow for future growth and customization.
