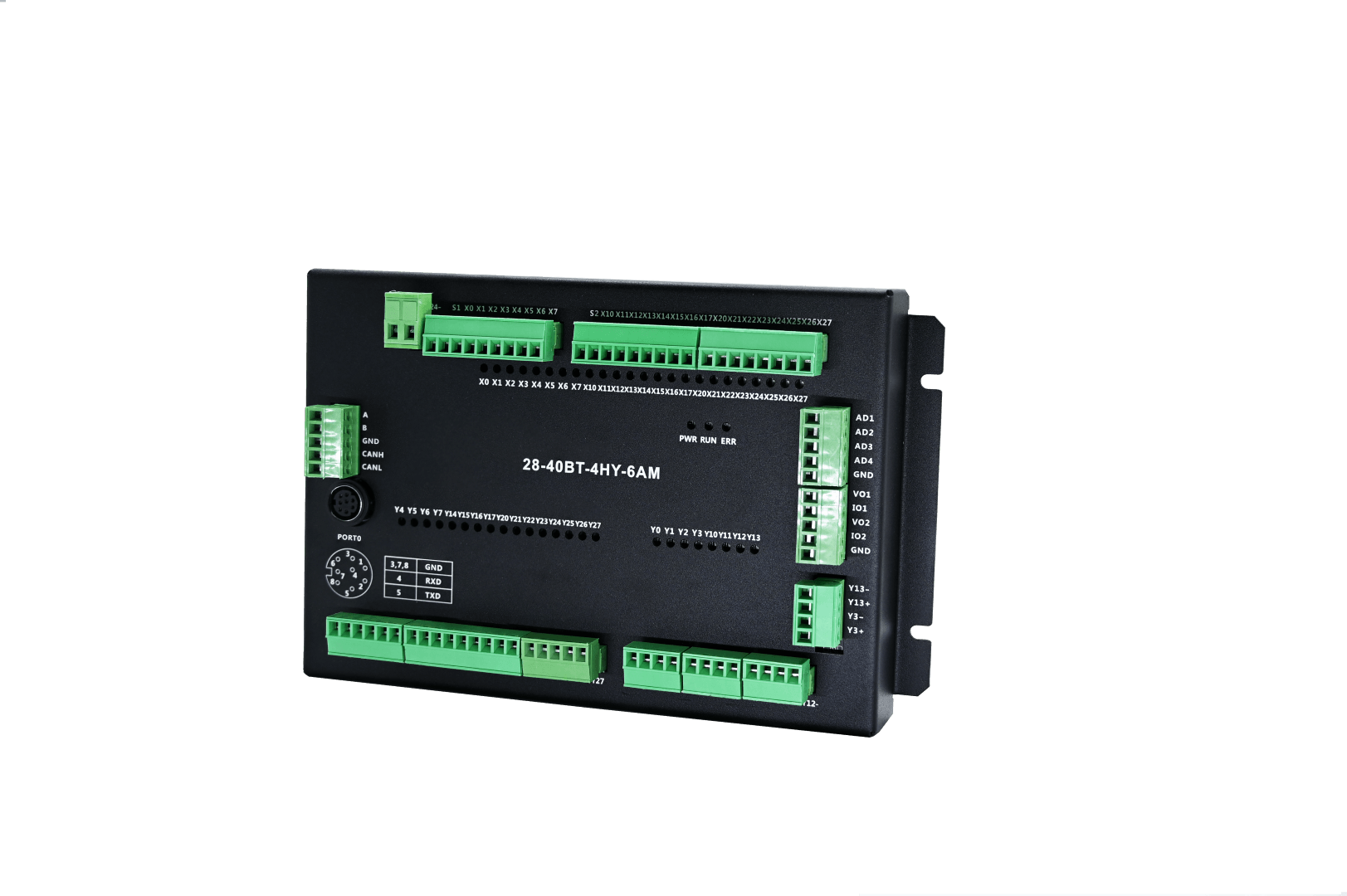

HT28 Series PLC Motion Controller

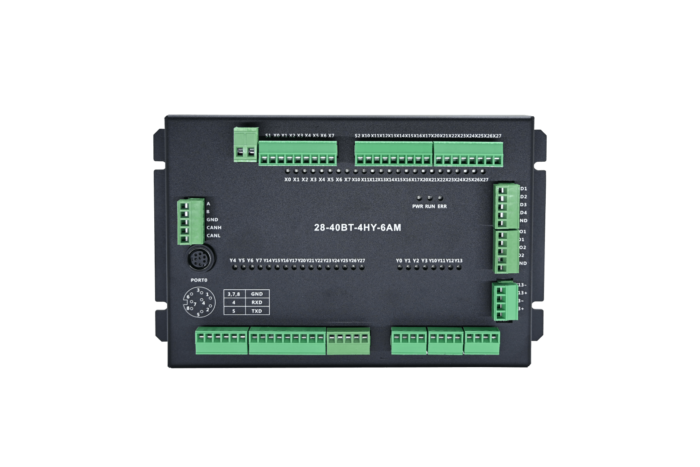

HT28 Series PLC Motion Controller - Image 2

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

HT28 Series PLC Motion Controller

Be the first to leave a review.

HT28 series PLC motion controller was designed based on HT20 series PLC. This is a high-performance motion control PLC that integrates 6-axis pulse, analog acquisition, temperature acquisition and Canbus. The standard model is 28-40BT-4HY-6AM.

* All prices are net prices (without VAT) and do not include transport costs, which will be added in the order.

HT28 Series PLC Motion Controller

$145.77

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products
HT28 Series PLC Motion Controller
HT28 Series PLC Motion Controller - Image 2

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

HT28 Series PLC Motion Controller

$145.77

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products

HT28 series PLC motion controller

HT28 series PLC motion controller was designed based on HT20 series PLC. This is a high-performance motion control PLC that integrates 6-axis pulse, analog acquisition, temperature acquisition and Canbus. The standard model is 28-40BT-4HY-6AM.

General technical data

Power supply 24VDC, 20.4VDC~28.8VDC
Input 24 channels, NPN, optical coupler isolation
Output 16 channels, optical coupler isolation, collector emitter output
Analog inputs 4 channels, 0~10V/4~20mA/PT100/NTC
Analog outputs 2 channels, 0~10V/4~20mA
Communication 1 RS232, 1 RS485 and 1 CANBUS
High speed inputs 3 channels of AB counts
High speed outputs 6x 100KHz pulse outputs: 4 differential 5V (pulse + direction), 2 collector pulse outputs
