Honyee Stepper Drive and Motor Solutions

Digital Two-Phase Open-Loop Driver

Model HK430 HK542 HK556 HK556S HK872 HK860
Phase 2 phase
Dial switch
  • SW1-SW4 Current switch
  • SW5-SW8 Subdivision switch
  • SW1-SW3 current dial switch
  • SW4 full current/half current lock switch
  • SW5-SW8 subdivision dial switch
Current 0.10-2.20A 0.71-3.00A 1.00-4.00A 2.00-6.00A
Peak current 0.14-3.00A 1.00-4.20A 1.40-5.60A 2.40-7.20A
Supply voltage DC12-40V DC12-75V DC24-90V
AC18-60V		 DC24-110V
AC18-80V
Subdivision parameter 200-20000 P/R 200-25600 P/R 400-51200 P/R
Electric frequency signal 5-24V compatible
No series resistor required
Control method Pulse+direction/double pulse Pulse+direction Pulse+direction/double pulse
Maximum pulse frequency 500KHZ
Factory default 200KHZ
Signal interface
  • PUL+ and PUL- are the positive and negative ends of the pulse signal.
  • DIR+ and DIR- are the positive and negative ends of the direction signal.
  • EAN+ and EAN- are the positive and negative ends of the enable signal.
Motor wiring A+(Black) A-(Green) B+(Red) B-(Blue)
Debug port type-c RJ11
Protection Overvoltage/undervoltage/overcurrent
Color Black
Dimensions 93 * 56 * 21 118 * 76 * 33 151 * 98 * 47
Adaptive motor 28/35/42 base open loop motor
Certificate CE/FCC

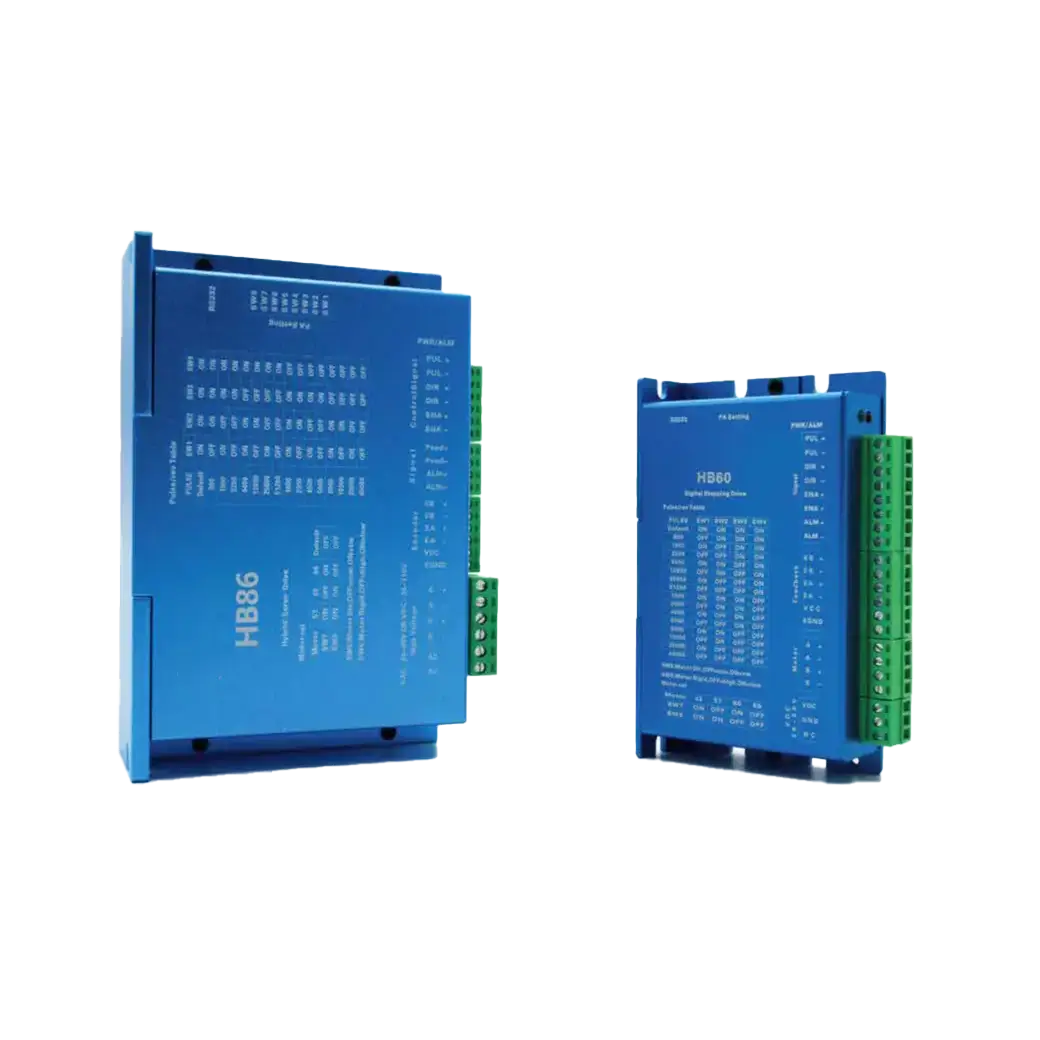

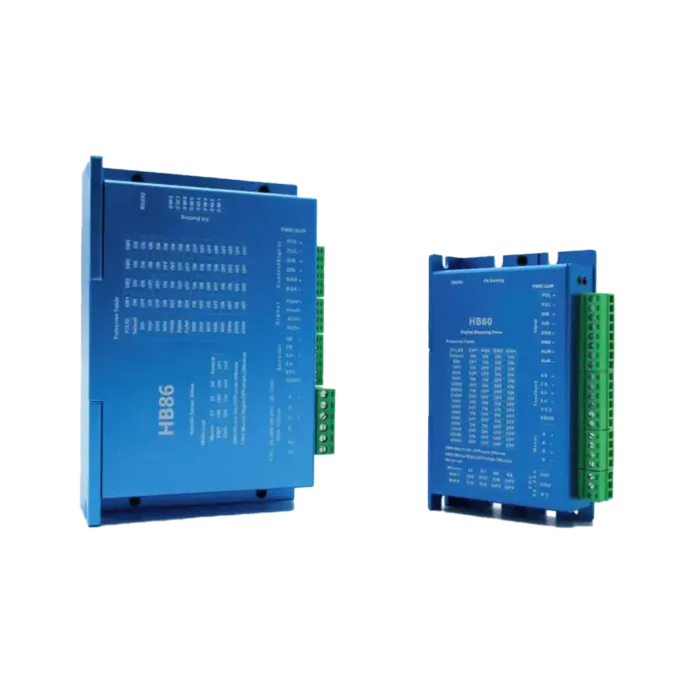

Digital Two-Phase Closed-Loop Driver

Model HB60 HB86
Phase 2 phase
Dial switch
  • SW1-SW4 subdivision dial
  • SW5 motor direction selection (ON clockwise, OFF counterclockwise)
  • SW6 driver rigidity selection (ON rigidity weak, OFF rigidity strong)
  • SW7-SW8 motor base selection
Current 8A
Peak current 13A
Supply voltage DC20-80V DC24-110V / AC20-80V
Subdivision parameter 400-51200 P/R
Electric frequency signal 5-24V compatible
No series resistor required
Control method Pulse + direction / double pulse
Maximum pulse frequency 500KHz
Factory default 300KHz
Signal interface
  • PUL+ and PUL- are the positive and negative ends of the pulse signal.
  • DIR+ and DIR- are the positive and negative ends of the direction signal.
  • EAN+ and EAN- are the positive and negative ends of the enable signal.
  • ALM+ and ALM- are the positive and negative ends of the alarm signal.
  • PUL+ and PUL- are the positive and negative ends of the pulse signal.
  • DIR+ and DIR- are the positive and negative ends of the direction signal.
  • EAN+ and EAN- are the positive and negative ends of the enable signal.
  • ALM+ and ALM- are the positive and negative ends of the alarm signal.
  • PEND+ and PEND- are the positive and negative ends of the arrival signal.
Motor wiring A+ (Black) A- (Green) B+ (Red) B- (Blue)
Encoder wiring EGND (Black) VCC (Red) EA+ (Blue) EA- (Blue-Black) EB+ (Green) EB- (Green-Black)
Debug port RJ11
Protection Overvoltage / undervoltage / overcurrent / overproof
Color Sand black / Sand blue Sand blue
Dimensions 116 x 70 x 27 151 x 97 x 52
Installation size 108 139
Adaptive motor 42/57/60 base closed loop motor 86 base closed loop motor
Certificate CE / FCC

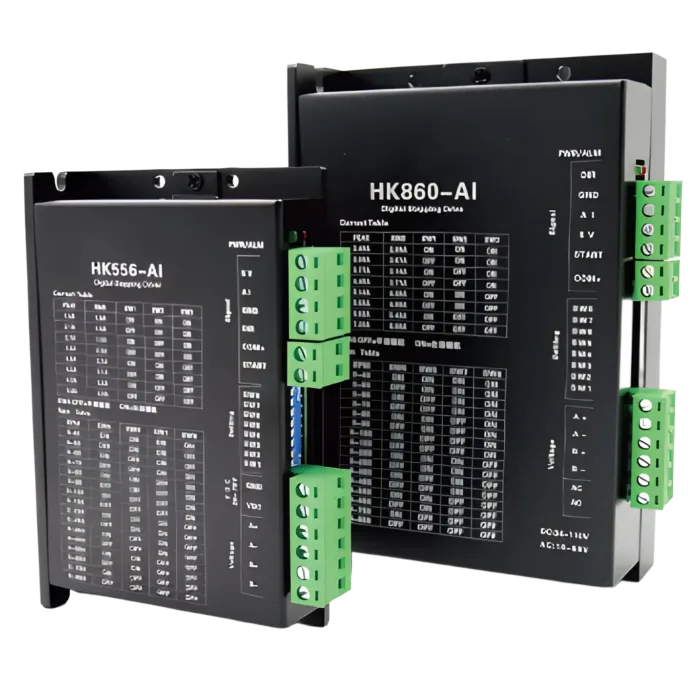

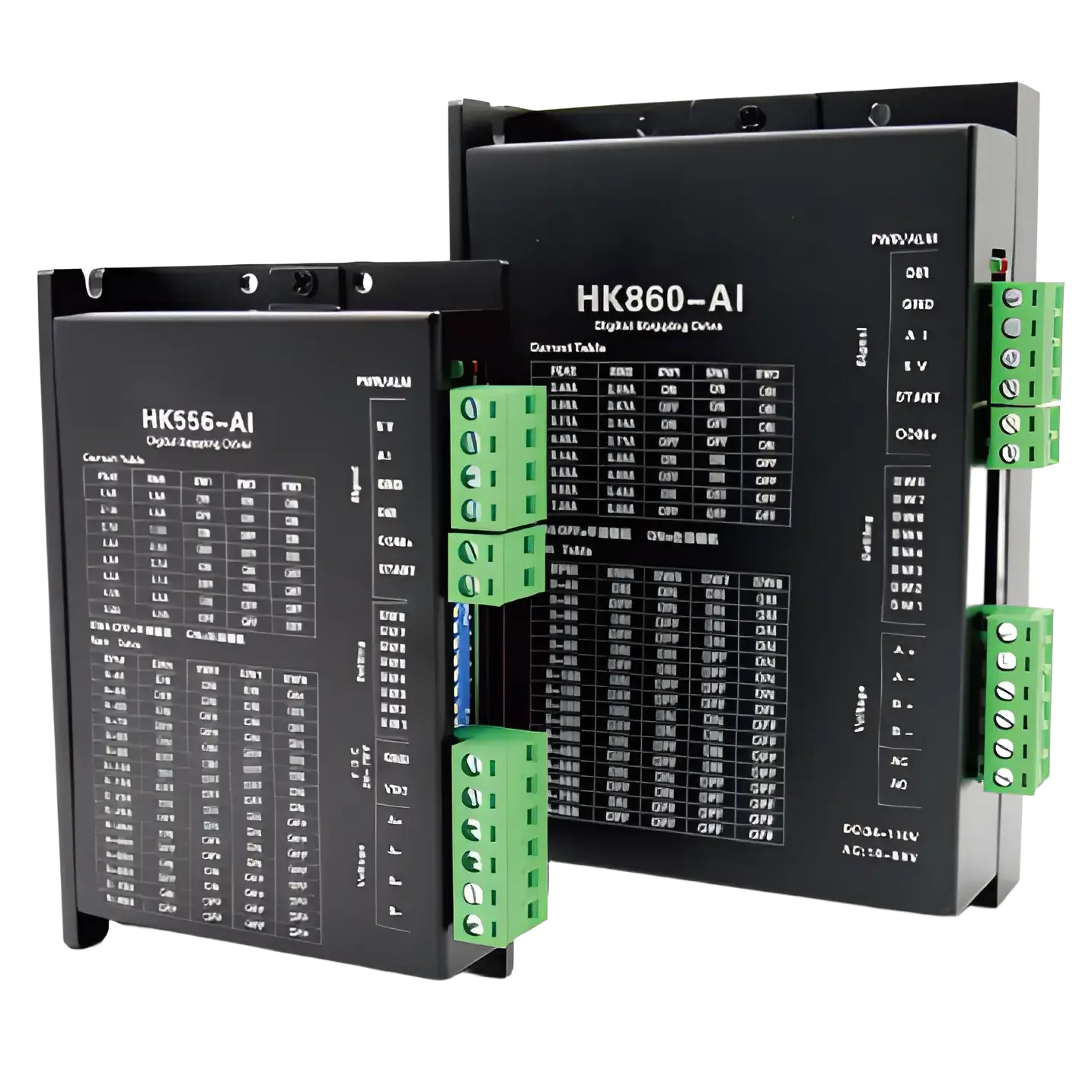

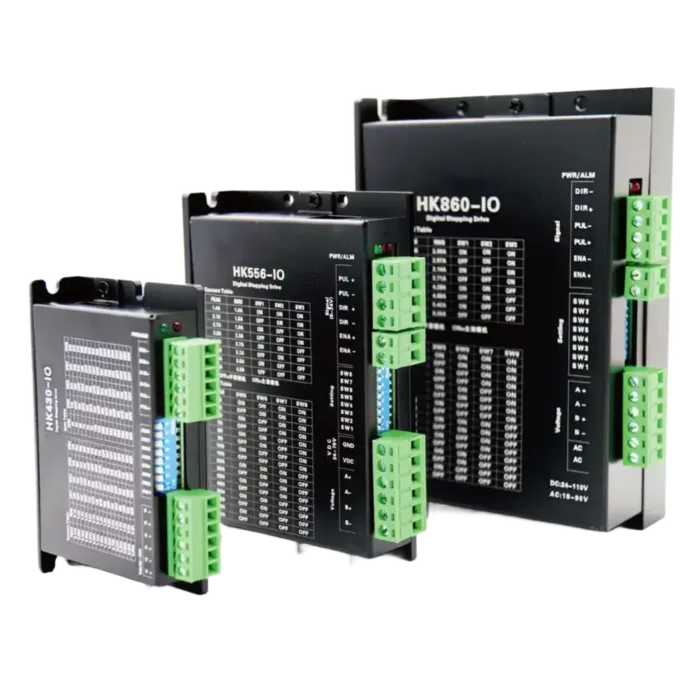

Self-Commuted Pulse Driver

Model HK430-IO HK556-IO HK860-IO HK556-AI HK860-AI
Phase 2 phase
Dial switch
  • SW1-SW4 current dial switch
  • SW5-SW8 speed dial switch
  • SW1-SW3 current dial
  • SW4 full current/half current lock
  • SW5-SW8 speed dial
Current 0.10-2.20A 1.00-4.00A 2.00-6.00A
Peak current 0.14-3.00A 1.40-5.60A 2.40-7.20A
Supply voltage DC12-40V DC12-75V DC24-110V
AC18-80V		 DC12-75V
Rotate speed 40-850RPM
Electric frequency signal 5-24V compatible
No series resistor required
Control method IO (Digital) A (Analog)
Signal interface
  • PUL+ and PUL- are the positive and negative ends of the pulse signal.
  • DIR+ and DIR- are the positive and negative ends of the direction signal.
  • EAN+ and EAN- are the positive and negative ends of the enable signal.
  • 5V connected to the positive end of the sliding resistor.
  • AI analog input speed control.
  • GND analog input GND.
  • DIR direction model-.COM+ start signal and direction signal+.
  • START start signal-.
Motor wiring A+(Black）A-(Green）B+(Red）B-(Blue)
Debug port type-c RJ11
Protection Overvoltage / undervoltage / overcurrent
Color Sand Black
Dimension 93 x 58 x 21 118 x 76 x 33 150 x 97 x 53
Installation size 85 110 138
Adaptive motor 28/35/42 base open loop motor 57/60 base open loop motor 86 base open loop motor
Certificate CE / FCC

Bus Driver

Series EtherCAT Bus Driver 485 Bus Driver
Model EC57 EC86 RS57
Phase 2 phase
Dial switch
  • SW1-SW3 current dial switch.
  • SW4 driver rigidity selection (ON rigidity strong, OFF rigidity weak).
  • SW5 motor direction selection (ON forward, OFF reverse).
  • SW6-SW7 filter time setting.
  • SW8 open-closed loop selection (ON open-loop, OFF closed-loop).
  • SW1-SW5 Address dial switch.
  • SW6-SW7 Baud rate dial switch.
  • SW8 Terminal resistance selection (OFF: RS485 R OFF; ON: RS485 R ON).
Maximum current 5.6A 6.5A 5.6A
Supply voltage DC24-80V
AC18-60V		 DC24-80V
Electric frequency signal 5-24V compatibility
No need for series resistors
Communication mode EtherCAT 485
Signal interface
  • IN0-digital input signal 0 input terminal
  • IN1-digital input signal 1 input terminal
  • IN2-digital input signal 2 input terminal
  • IN3-digital input signal 3 input terminal
  • IN+-digital input signal positive terminal
  • OT-digital output signal 0 negative terminal
  • OT0+-digital output signal 0 positive terminal
  • OT1+-digital output signal 1 positive terminal
Motor wiring A+(Black) A-(Green) B+(Red) B-(Blue)
Encoder wiring EGND (Black) VCC(Red) EA+ (Blue) EA- (Blue-Black) EB+ (Green) EB-(Green-black)
Debug port type-c
Communication port RJ45*2
Protection Overvoltage / undervoltage / overcurrent / out of tolerance
Color Black
Dimension 119×76×26 135×82×32 119×76×26
Installation size 112 127 112
Adaptive motor 42/57/60 base closed loop motor 86 base closed loop motor 42/57/60 base closed loop motor
Certificate CE/FCC

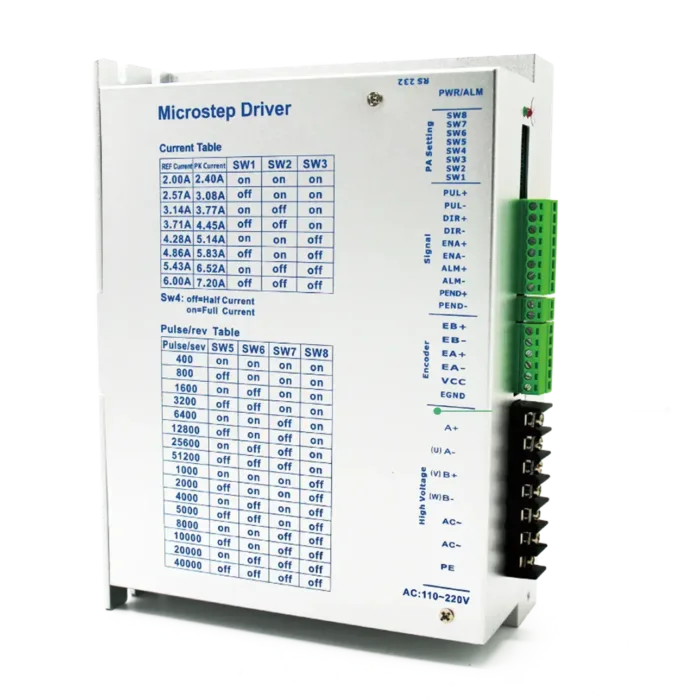

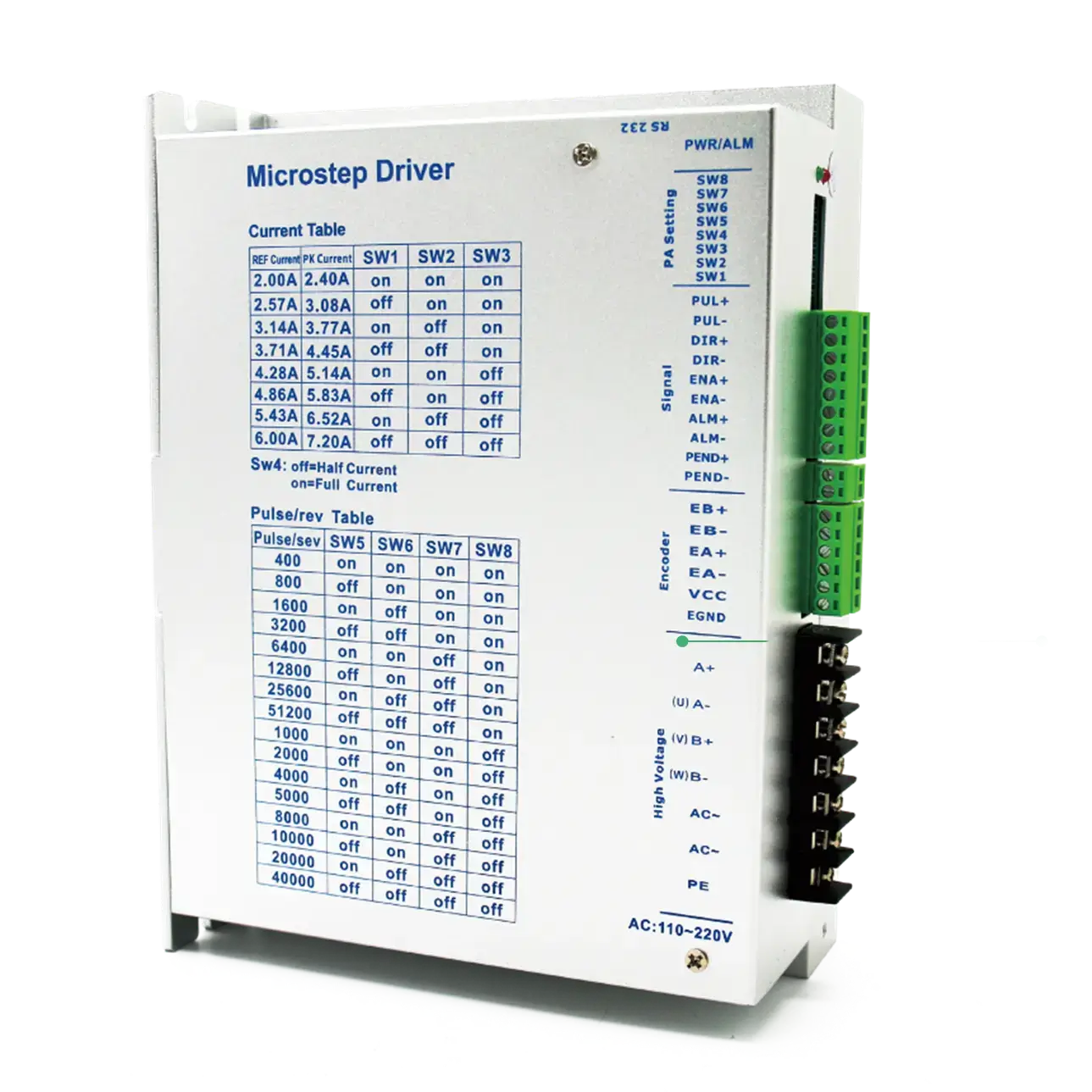

High-Voltage Driver

Series Maximum Pulse Frequency Three-phase High Voltage Driver
Model HK2280 HB2280 3HK2280 3HB2280
Phase 2 phase 3 phase
Dial switch
  • SW1-SW3 current dial switch.
  • SW4 full current/half current lock switch.
  • SW5-SW8 subdivision dial switch.
  • SW1-SW4 subdivision dial.
  • SW5 motor direction selection (ON clockwise, OFF counterclockwise).
  • SW6 driver rigidity selection (ON rigidity weak, OFF rigidity strong).
  • SW7-SW8 motor base selection.
  • SW1-SW3 current dial switch.
  • SW4 full current/half current lock switch.
  • SW5-SW8 subdivision dial switch.
      • SW1-SW4 subdivision dial.
      • SW5 motor direction selection (ON clockwise, OFF counterclockwise).
      • SW6 driver rigidity selection (ON rigidity weak, OFF rigidity strong).
      • SW7-SW8 motor base selection.


Current 2.00-6.00A 8A
Peak current 2.40-7.20A 13A
Supply voltage AC110-220V
Subdivision parameter 200-51200 P/R
Electric frequency signal 5-24V compatible
No series resistor required
Control method Pulse+direction/ double pulse
Maximum pulse frequency 200kHz
Protection Overcurrent/overvoltage/overtemperature/out of tolerance
Color Black
Dimension 119 × 76 × 26 135 × 82 × 32 119 × 76 × 26 135 × 82 × 32
Installation size 112 127 112 127
Adaptive motor 42/57/60 base closed loop motor 86 base closed loop motor 42/57/60 base closed loop motor 86 base closed loop motor
Certificate CE/FCC
