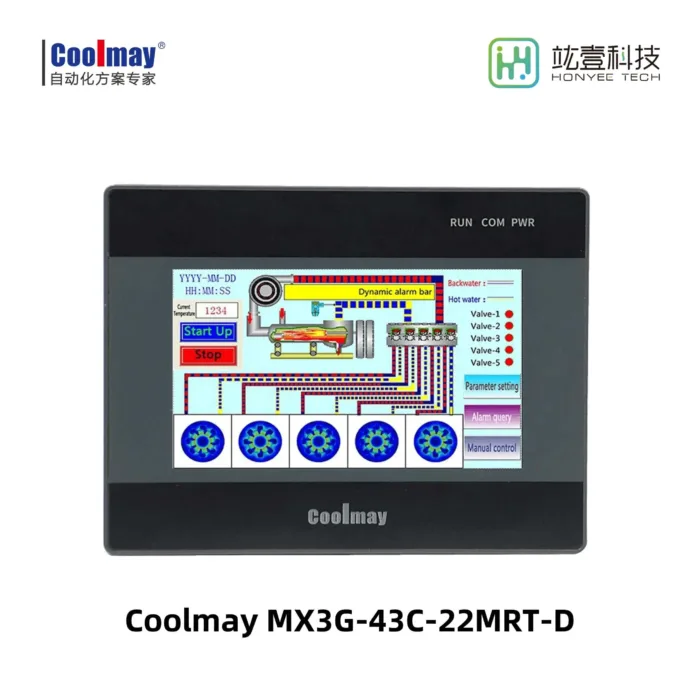

Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 2
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 3
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 4
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 5
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 6

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One

Be the first to leave a review.

The device includes functions below:

  • 4.3 inch HMI+PLC all-in-one
  • 12DI/10DO, transistor outputs
  • 5 analog inputs: 1*NTC10K, 2*0-10V, 2*0-20mA
  • 2 analog outputs: 1*0-10V, 1*0-20mA
  • RS232, RS485 port on PLC
Weight 0.5 kg
Dimensions 18 × 15 × 7 cm
Brand

Origin

Mainland China
Dimentions

134 × 102 × 34mm
Cutout Size

129 × 94mm
Display Size

97×56mm
Resolution

480×727
Power

4-6w
RAM

64MB
ROM

NOR Flash 8MB
CPU

32bit CPU 408MHz
I/O Points

Max 12DI 10DO(2T8R)

* All prices are net prices (without VAT) and do not include transport costs, which will be added in the order.

Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One

$109.95

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 2
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 3
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 4
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 5
Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One - Image 6

Product images are illustrative; actual items may vary. Core functionality remains unaffected.

Coolmay MX3G-43C-22MRT-D PLC+HMI All-in-One

$109.95

Be the first to leave a review.
  • 24/7 Online Support
  • 12 Months Warranty for New Products

Coolmay MX3G 4.3 inch PLC+HMI All-in-One

The package will include

  • 1 set of device MX3G-43C-22MRT-D and cables
  • Software and manuals are free of charge. They are available on our website or please contact our sales team for download links.



Note:

  1. The device includes functions below:
    • 4.3 inch HMI+PLC all-in-one
    • 12DI/10DO, transistor outputs
    • 5 analog inputs: 1*NTC10K, 2*0-10V, 2*0-20mA
    • 2 analog outputs: 1*0-10V, 1*0-20mA
    • RS232, RS485 port on PLC
  2. One set of cables is free of charge. Please order in our store for additional cables.


Connecting Image

Specifications of MX3G

Specification Value Specification Value
High-concerned Chemical None Model Number MX3G-43C-22MT-5AD2DA
Motor Type Stepper Motor Brand Name Coolmay
Origin Mainland China Certification CE
Dimensions 134*102*34mm Cutout size 120*94mm
Power consumption 4-6W Display size 97*56mm
Resolution (pixels) 480*272 RAM 64MB
ROM NOR Flash 8MB CPU 32bit CPU 408MHz
COM Type-C (HMI download port); PLC program can be downloaded through the USB penetrating function of HMI 1 RS232 on HMI Software TPWorks HMI software
I/O Max 12DI 10DO (2T8R)

Dimensions of MX3G


Dimensions Image

Wiring Diagram for MX3G


Wiring Diagram Image
